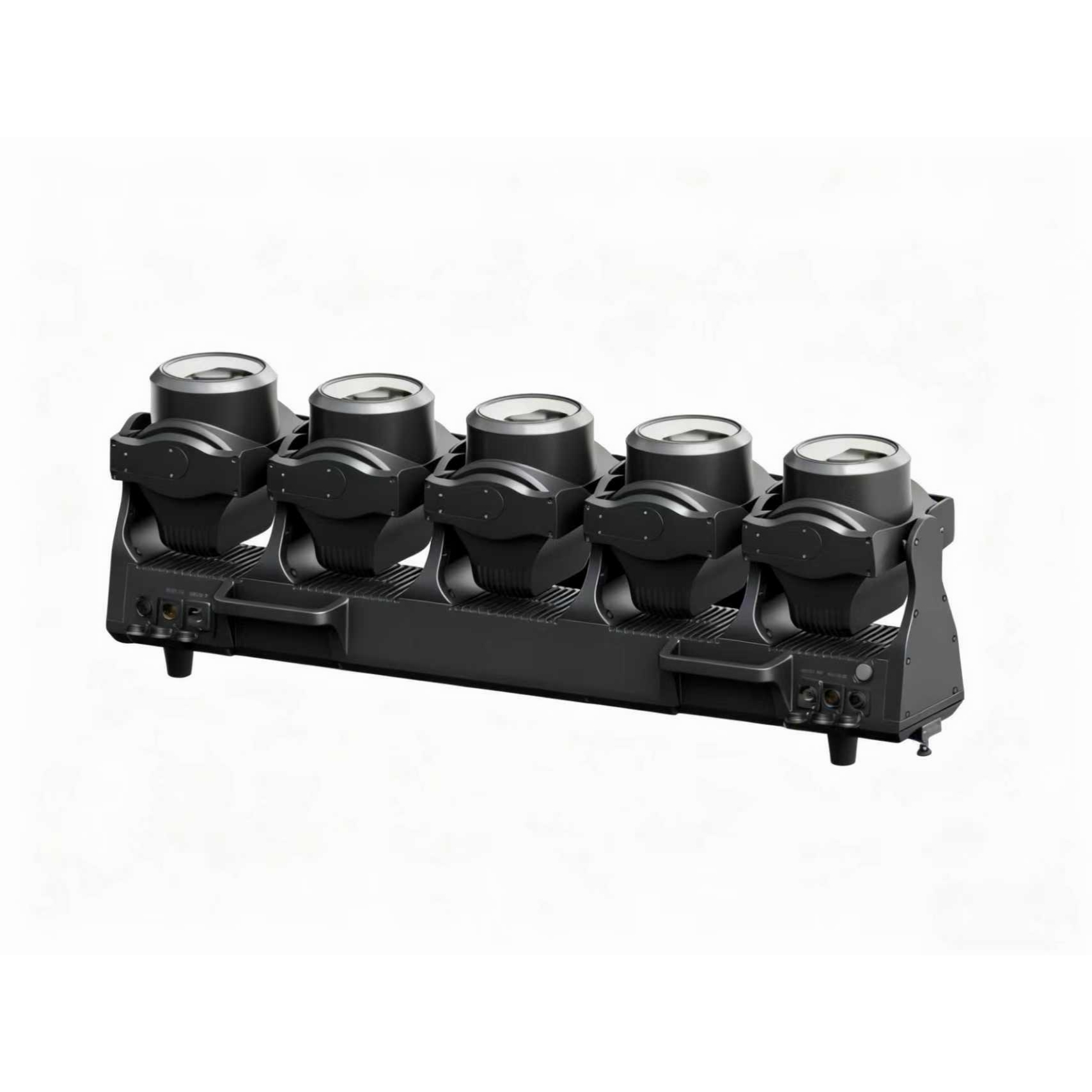

Light Source:
Main Light: 5*120W，RGBL4-in-1 LED

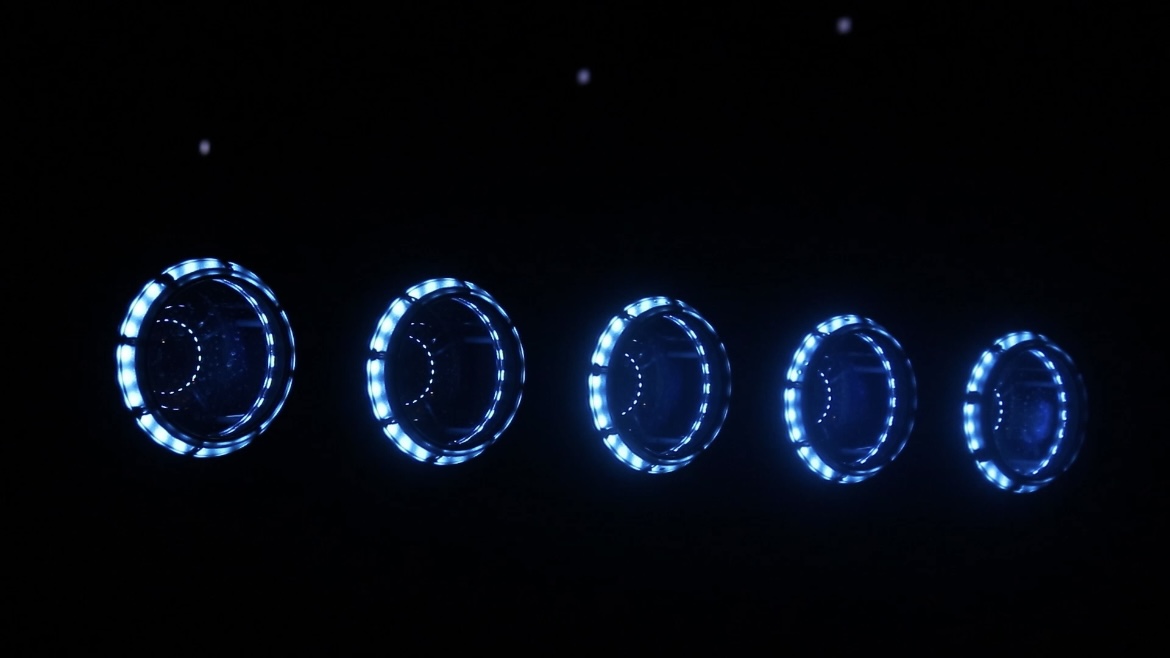

Outer Circle: 120*0.5 W，RGB 3-in-1 LED

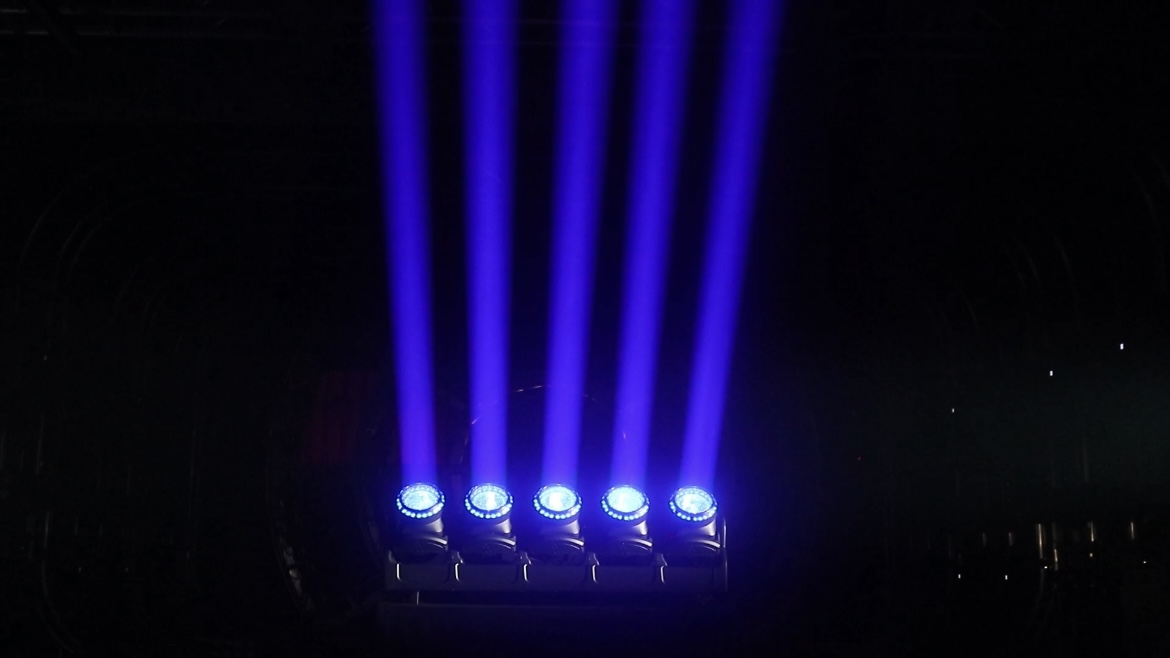

Beam angle: 3°-30 °
FieldAngle: 4°-35° Control and procedure:

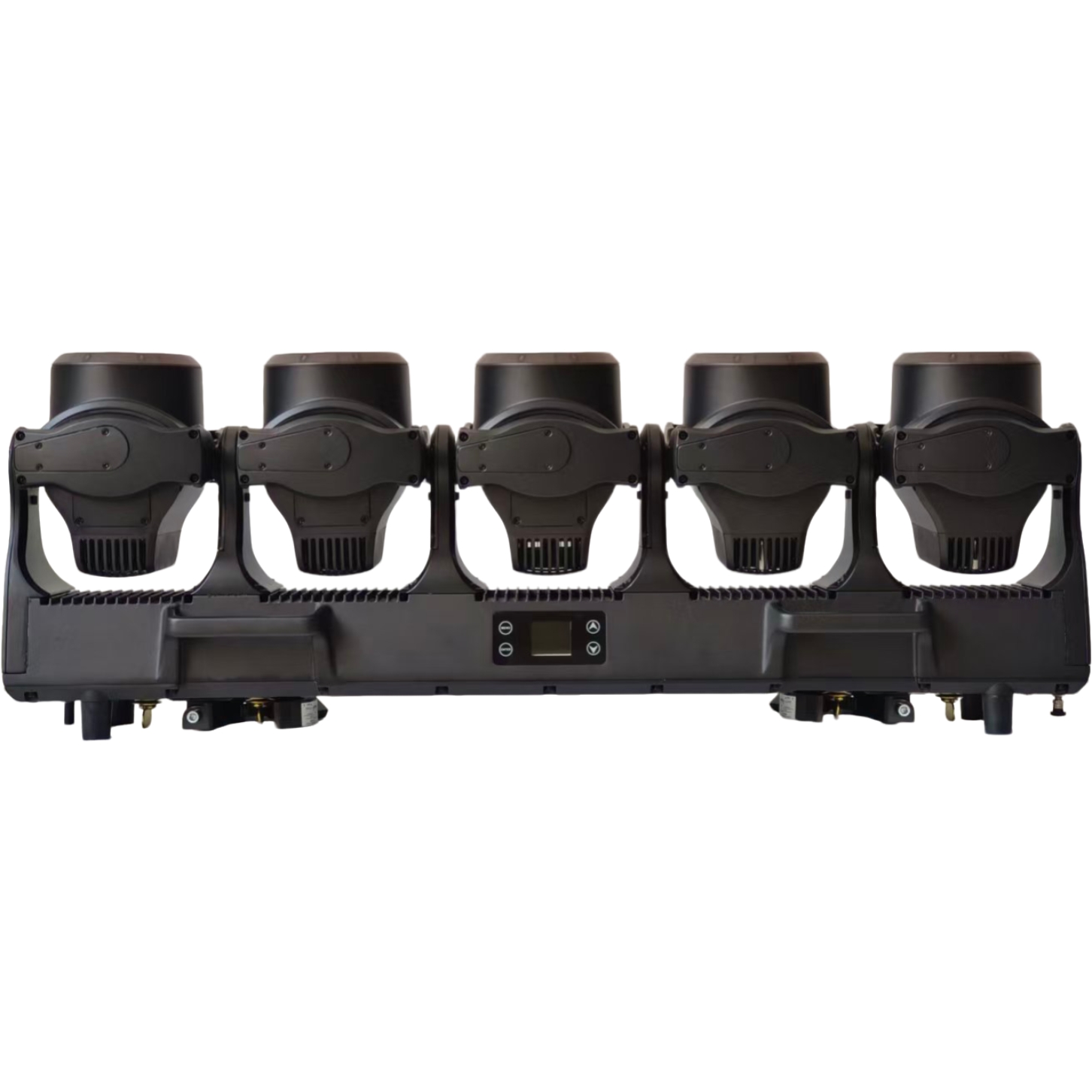

4 button Touch control panel
Display: LCD display
Control protocol: DMX512, RDM
DMX channel modes: 2
Control Channels: 21/41/71/75/85/170 CH
Software upgrade: Upgrade via DMX link Pan/ Tilt:
Pan Movement: 59°
Tilt Movement:221°
Electrical and Connectors
Input Voltage Range: 180-240V~50 / 60Hz
Power Consumption: 800 W

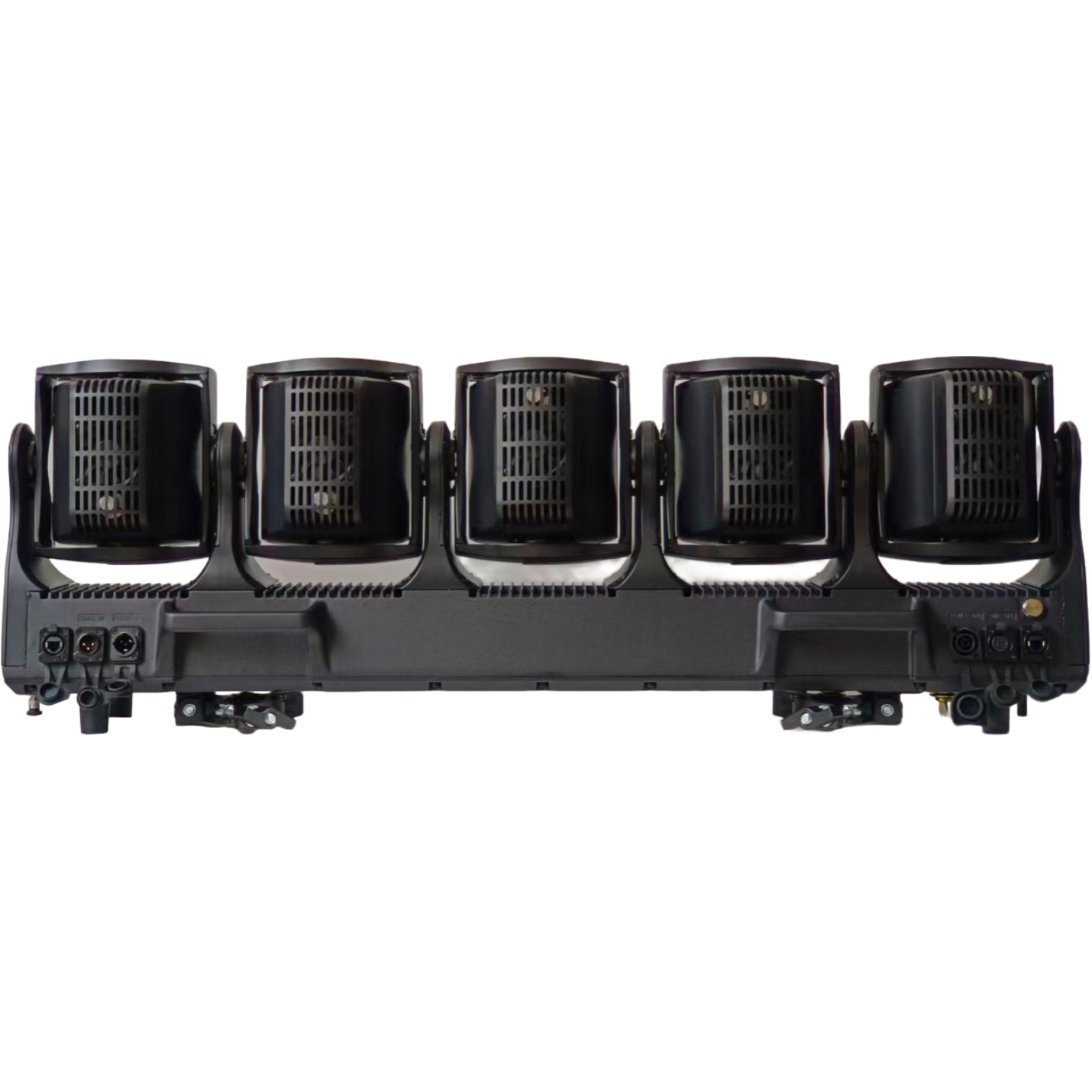

Power socket: Power connector in / out
Signal in/ out: 3-pin or 5-pin XLR, RJ45 connector Other effects:
Multiple speed strobe effects
Variable light adjustment from 0-100% dimming
Extraordinary color-mixing function
Special color macro effect
Agile fast linear focus Lighting specifications:

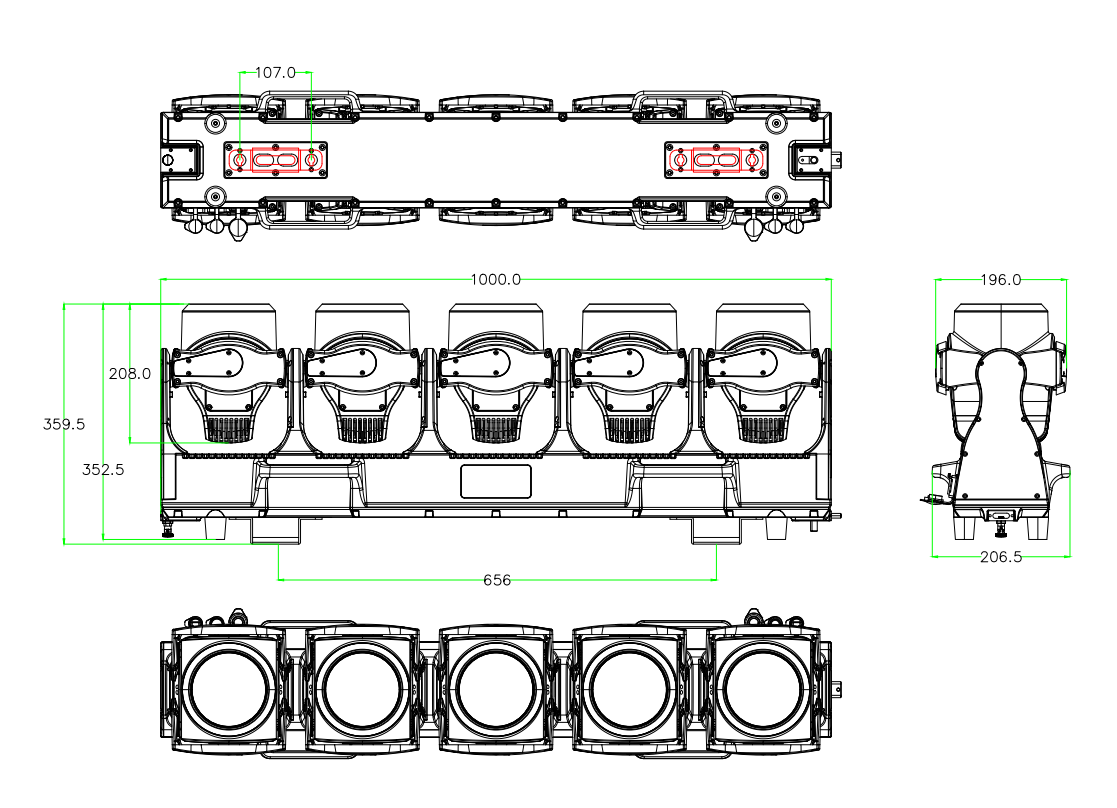

Dimensions: 1000 * 260 * 359mm
Weight: 33kg

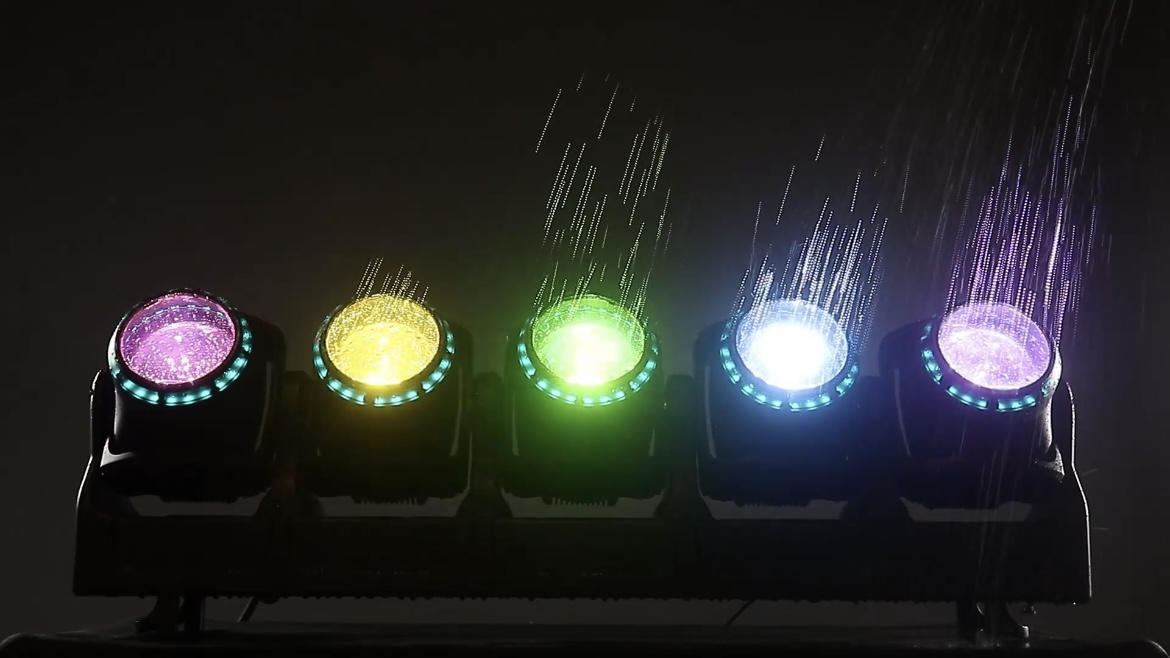

Protection Rating: IP65
