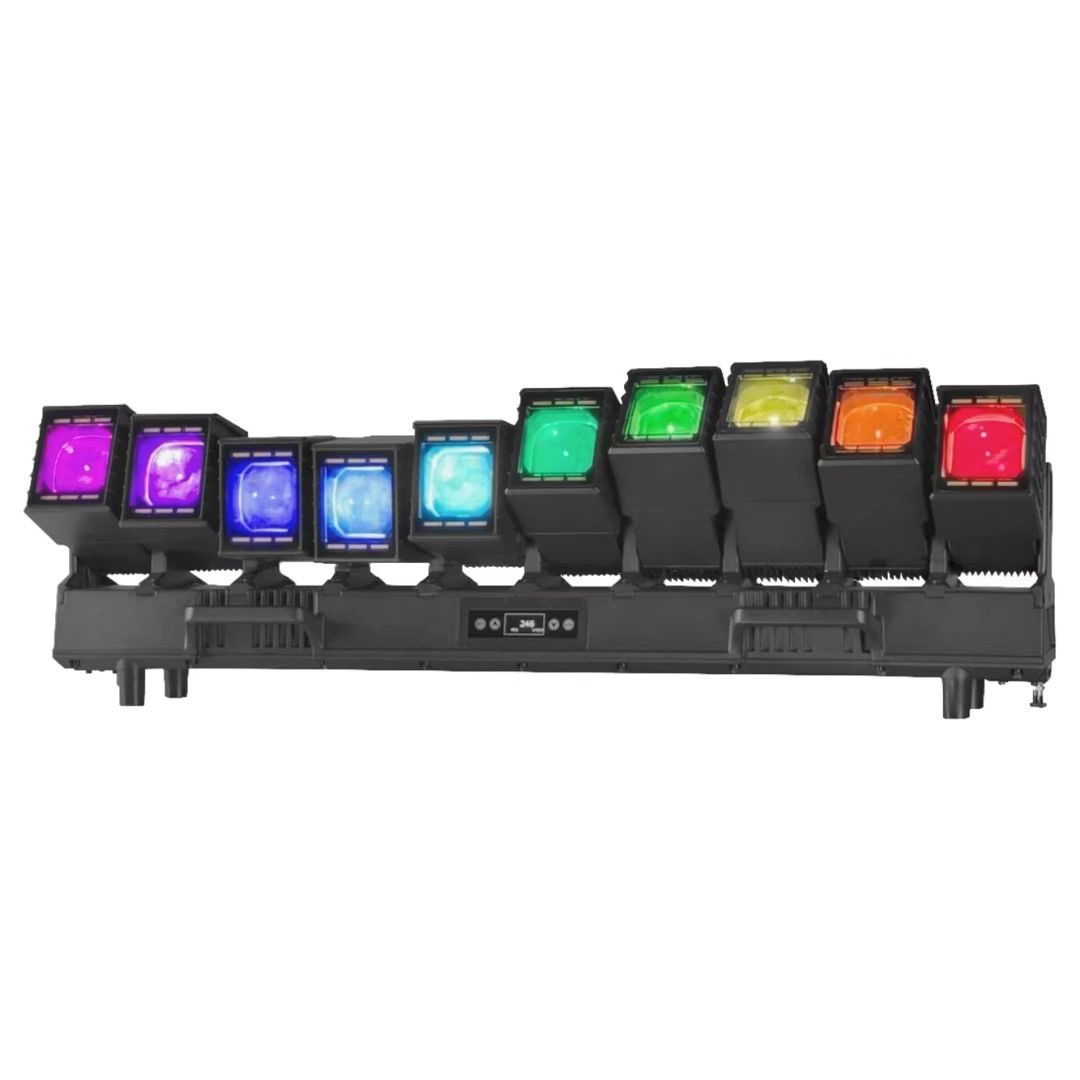

Light Source:
l Main LED:10x6OW RGBW LEDs
l Strobe 1:120 pcs 1W 6500K Cool white
l Strobe 2:120 pcs 1W 3000KWarm white
Optical System
l Main LED:
n Beam angle:4.5°-36°
n illuminance(4.5°):21,343 lux@ 5m
n illuminance(36°):1,653 lux@ 5m
n Total Lumen Output of Fixture: 8,380lm
l Field Strobe:
n Field Strobe:(6500K):14.700lm
n Field Strobe:(3000K):12.250Im
n PWM adjustable :600Hz ，1200Hz ，2000Hz ，4000Hz ，6000Hz ，15000Hz
Other Effects
l LED：Single control
l Tilt Movement：90° , 180° , 200°
l Dimmer：0-100% electronics,4 different dimmer curves
l Strobe：0-25Hz selectable multiple strobe effects with different speeds
l Zoom: 10 independent motorized zoom
l Color mixing：RGBW Color mixing or CMY Color mixing
Control
l Control protocol:：DMX ，RDM ，ArtNet ，sACN
l DMX（Single control）：29 ，56 ，142 ，216 ，262 ，282
l DMX（Dual control）Function：10 ，37 ，56 ，62
l DMX（Dual control）LED：150 ，160 ，200
l Firmware Upgrade: Upgrade via DMX link or USB stick
Electrical and Connectors
l Input Voltage：200V-240V ， 50/60Hz
l Power：1137W
l Operating Temperature：-40°~45°
l Strike Temperature：-20°~45°

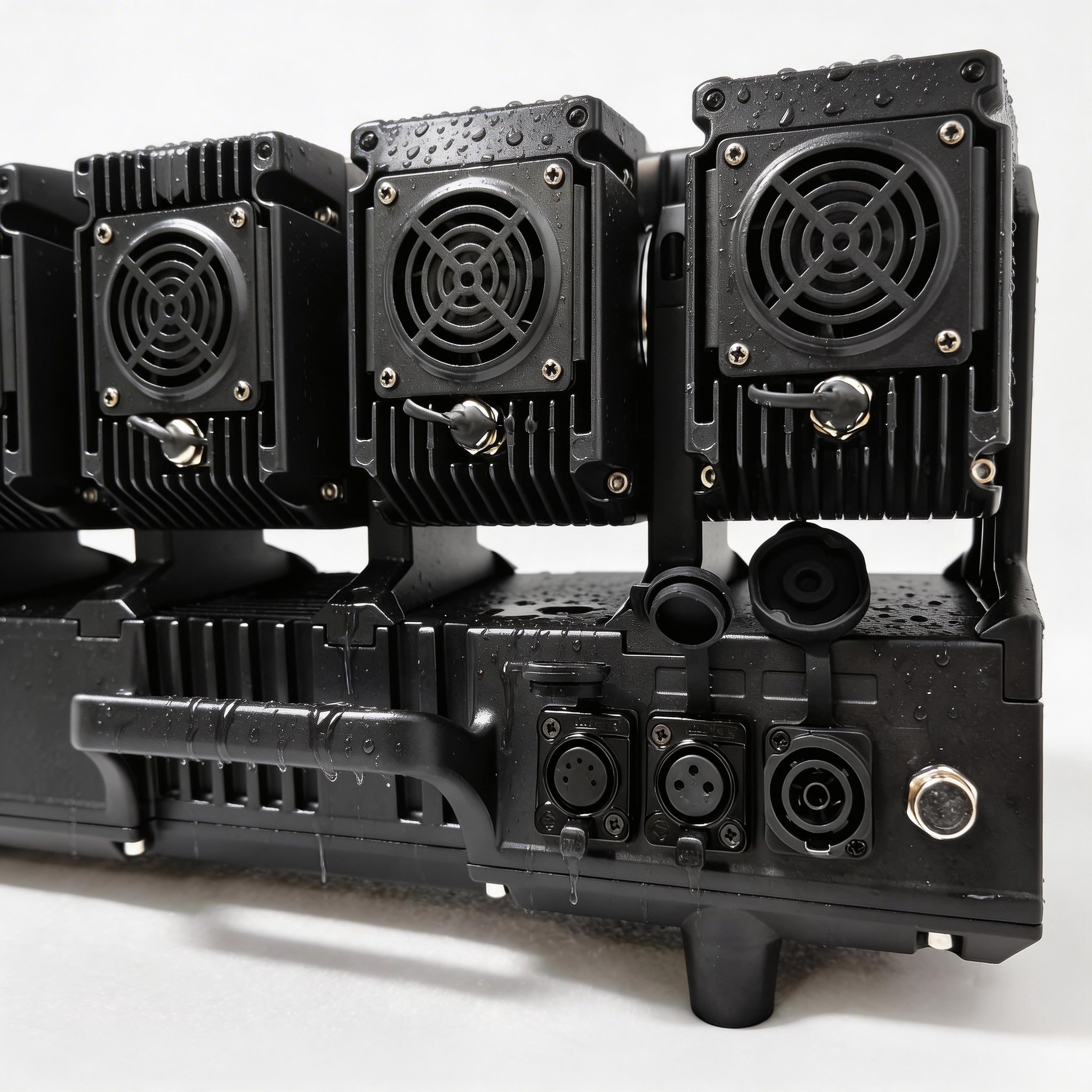

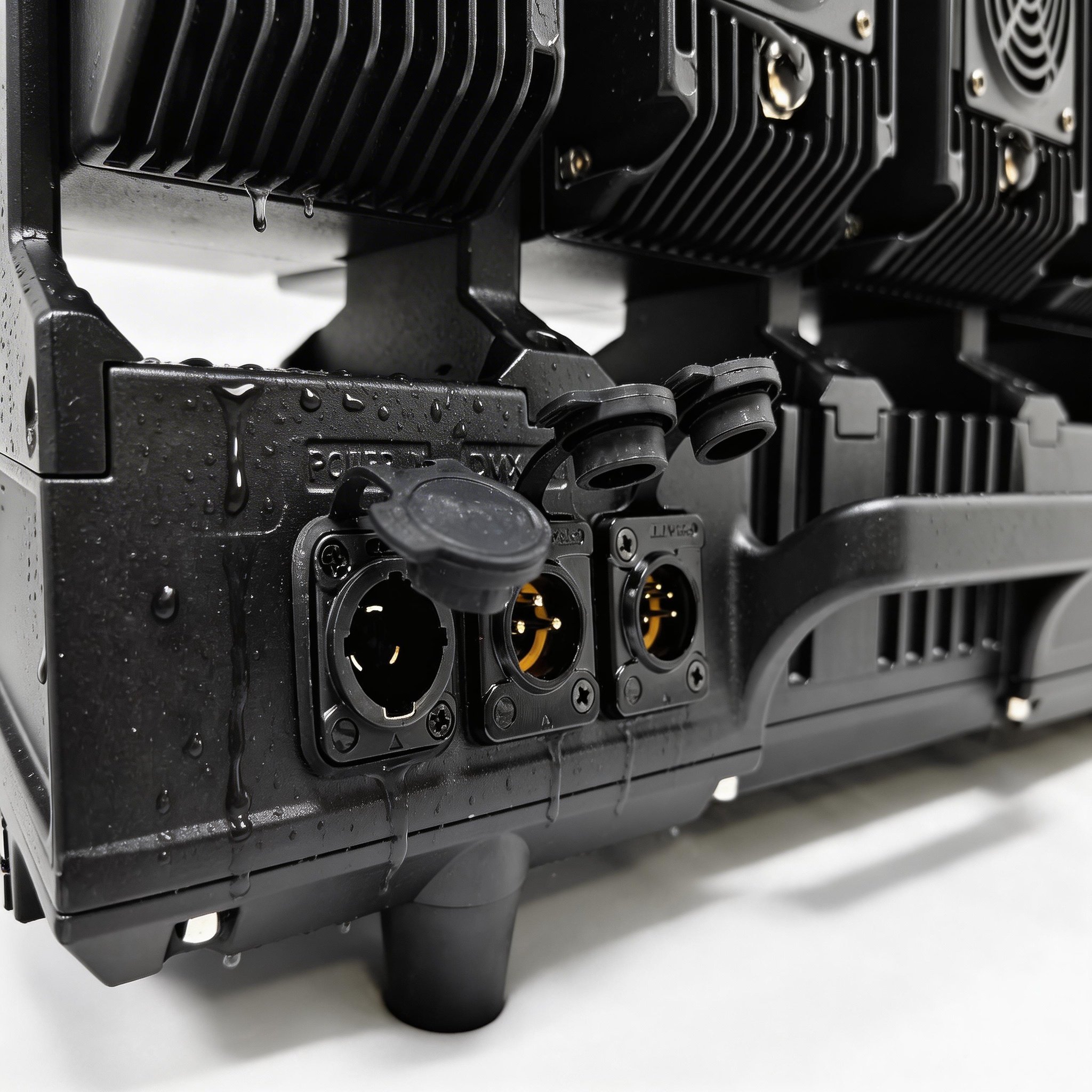

l Data In/Out: 3-pin or 5-pin waterproofXLR connector
Physical Information
l Size :1000*195*322mm
l Net Weight: 30.5KG

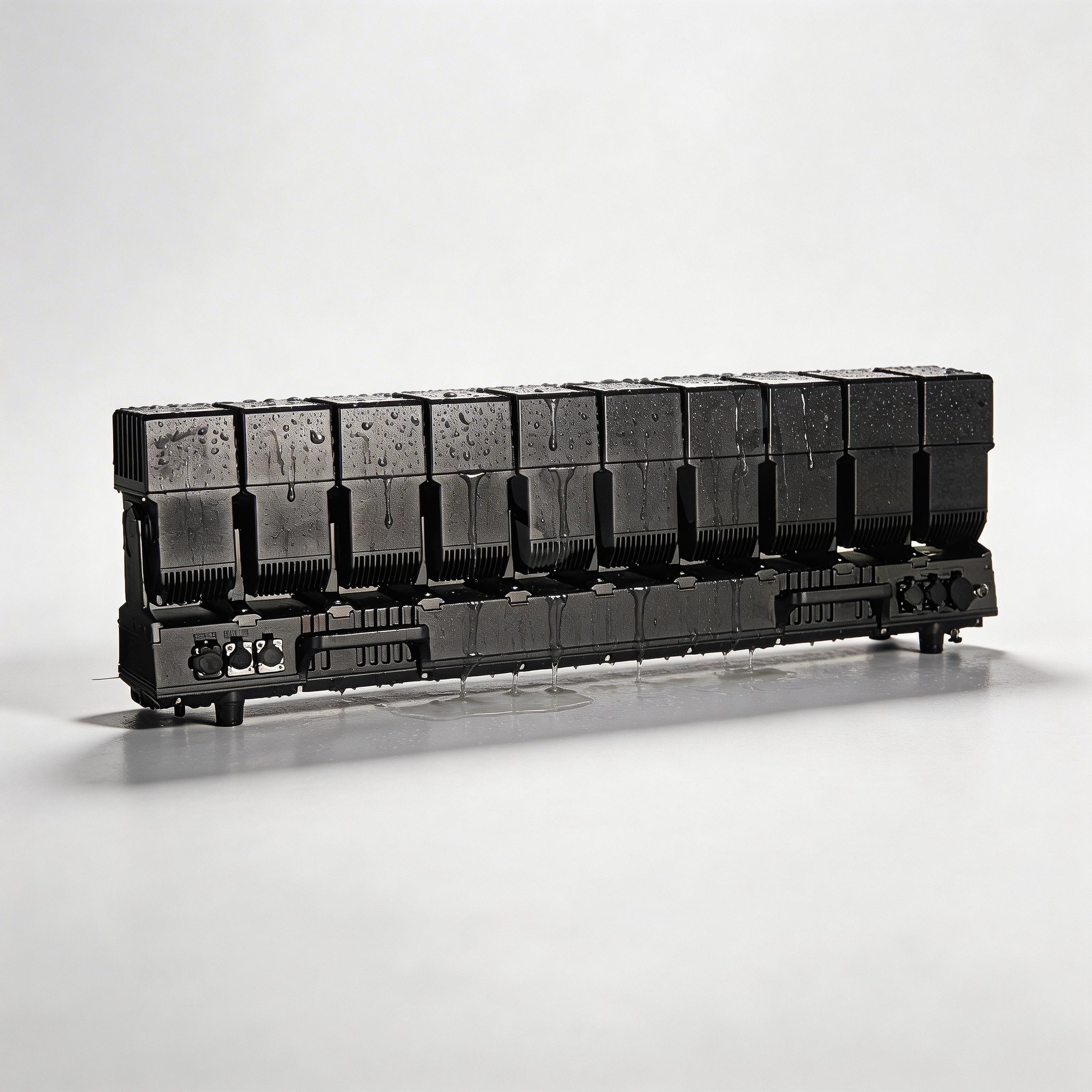

l Protection Rating: IP65
