Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power: 360W

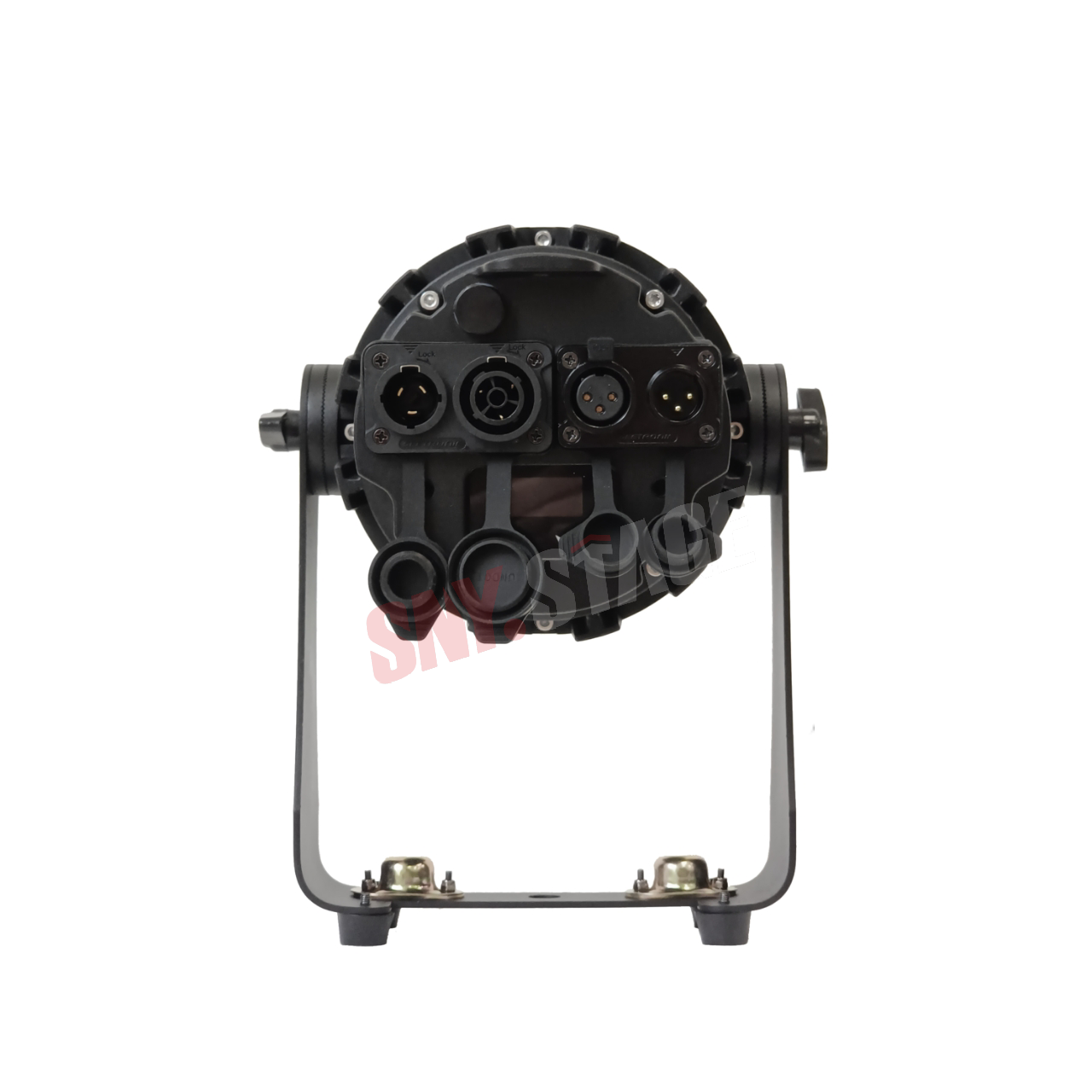

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
LIGHT SOURCE
Total Lumen Output of Fixture: 6,000 lumens
High narrow intensity: 360,000 cd
Pixelated Beam: 7x 60W RGBW LEDs
Filament Aura: 12x 4W RGBW LEDs
Color Temperature Output of Fixture:1,000-12,850 K
Dimming frequency: 2,400Hz～23,000Hz / 24,000Hz
Life Expectancy: 50,000 hours*
*Source manufacturer specification
Optical System
Beam Angle : 3.6°-35.3°
Field Angle : 8.8°～ 50.4°
Control
4 touch button control panel
Display: LCD display
Protocols:DMX、Art-Net、sACN、P3
DMX Protocol Modes: 7
Control Channels: 20, 36, 57, 93, 20, 14 & 25
Other Effect
More than 200 built-in FX macros with control of foreground color, background color,
speed and direction
P3 video mapping of fixture Beam pixels and/or Aura filaments
P3 Mix allowing crossfade between video looks and DMX looks
High-speed pan, tilt and zoom
Dimmer: Smooth dimming 0～100%
Pan & Tilt
Pan Movement: 540°
Tilt Movement: 220°
Automatic Pan/Tilt position correction
Resolution: 16 bit
Fixture Dimensions:
Size: 380*255*475mm
Weight: 8.8 kg

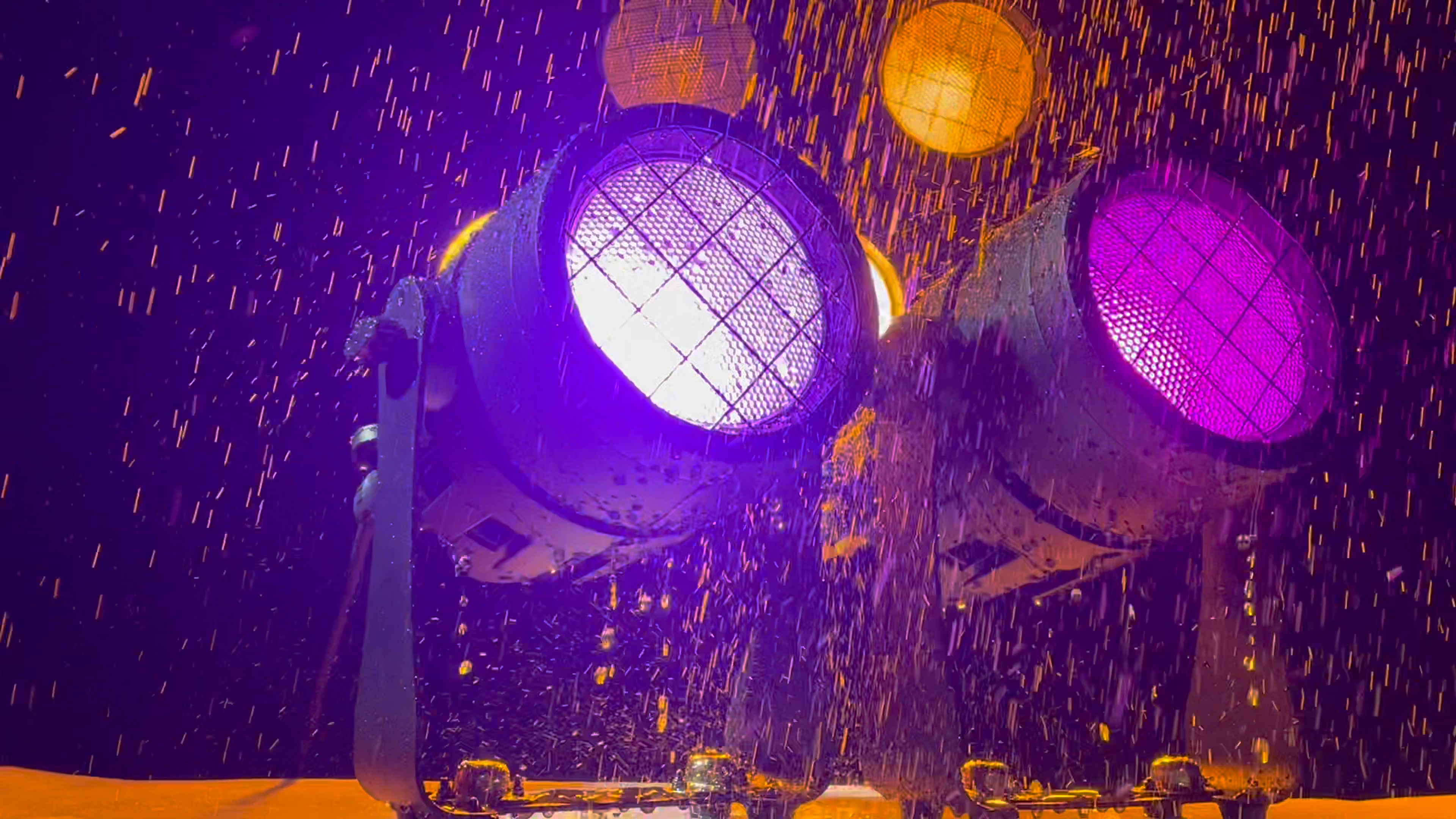

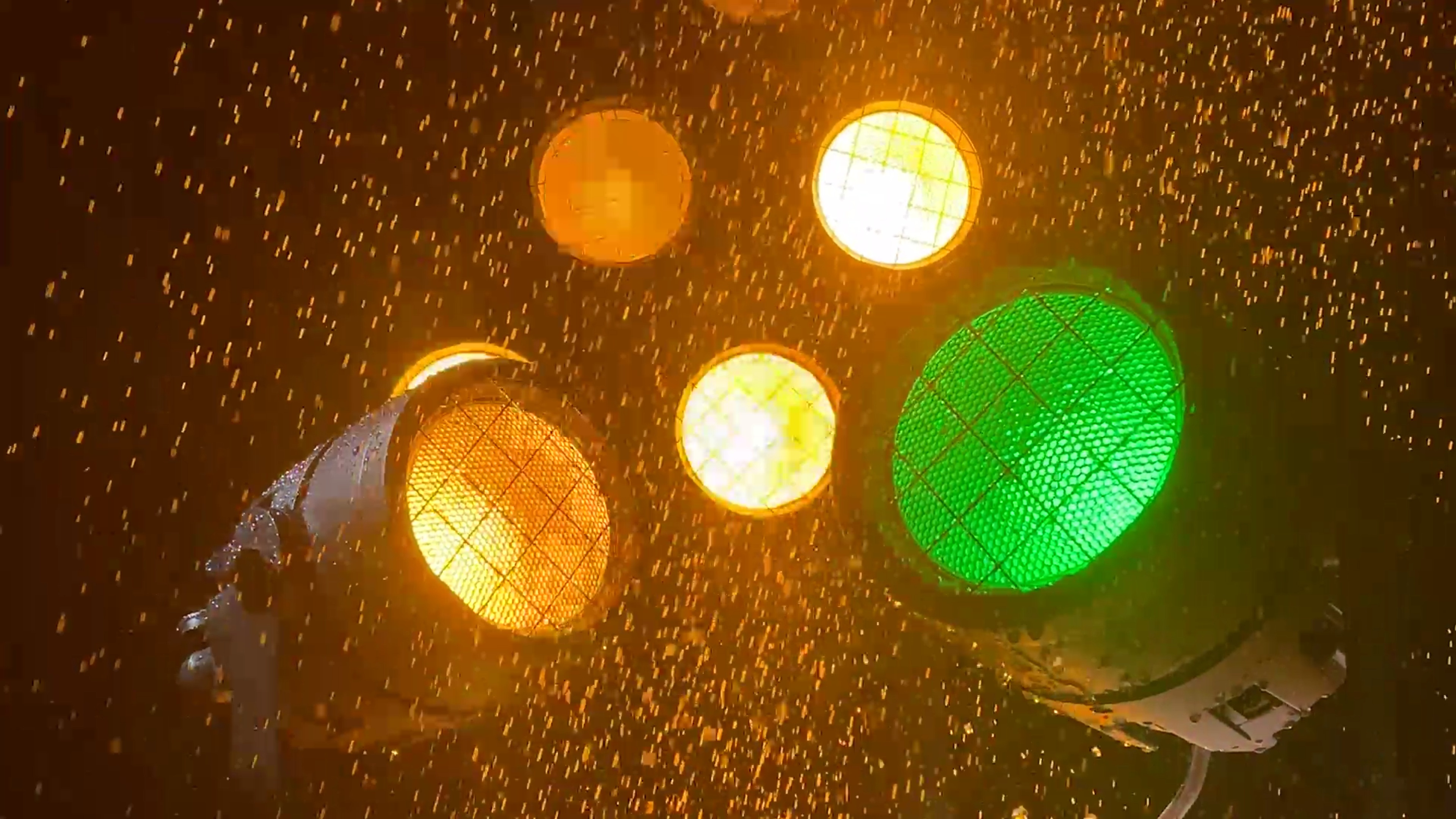

Protection Rating: IP65
