Electrical and Connectors
Input Voltage: AC 100-240V, 50-60Hz
Power: 200W

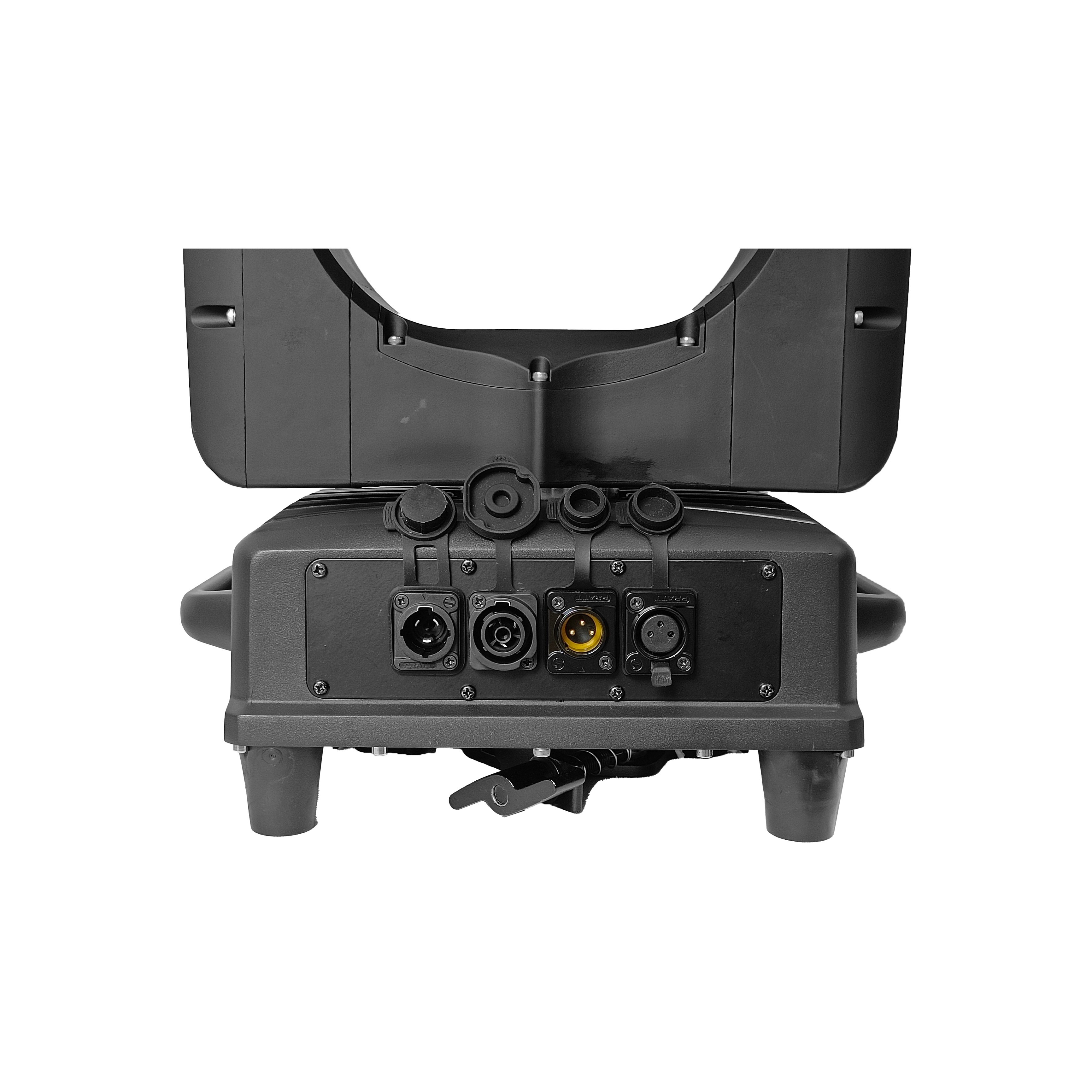

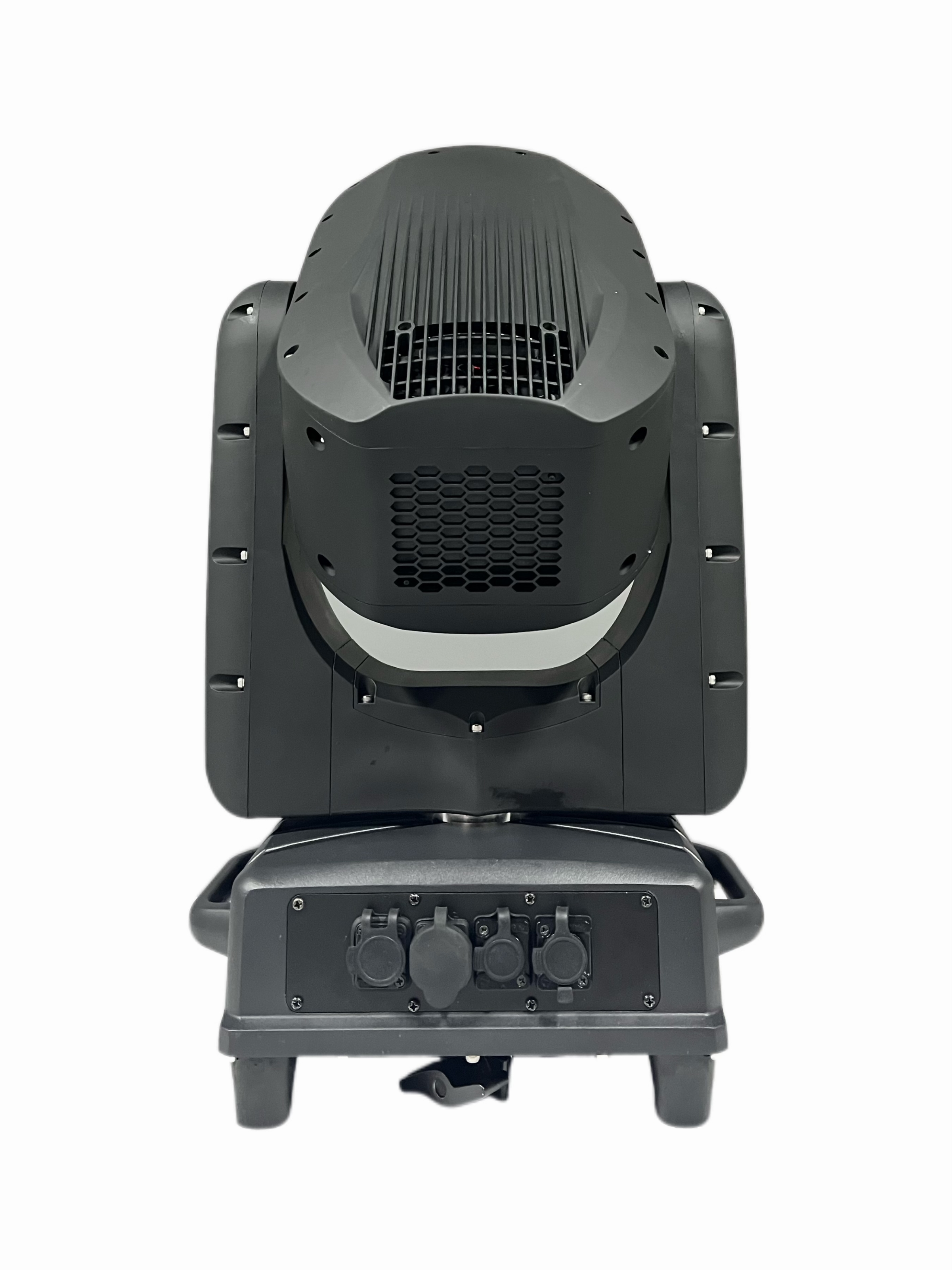

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Light Source
Light Source: 150w white laser light source
Color Temperature: 8000K white (adjustable)
Optical System

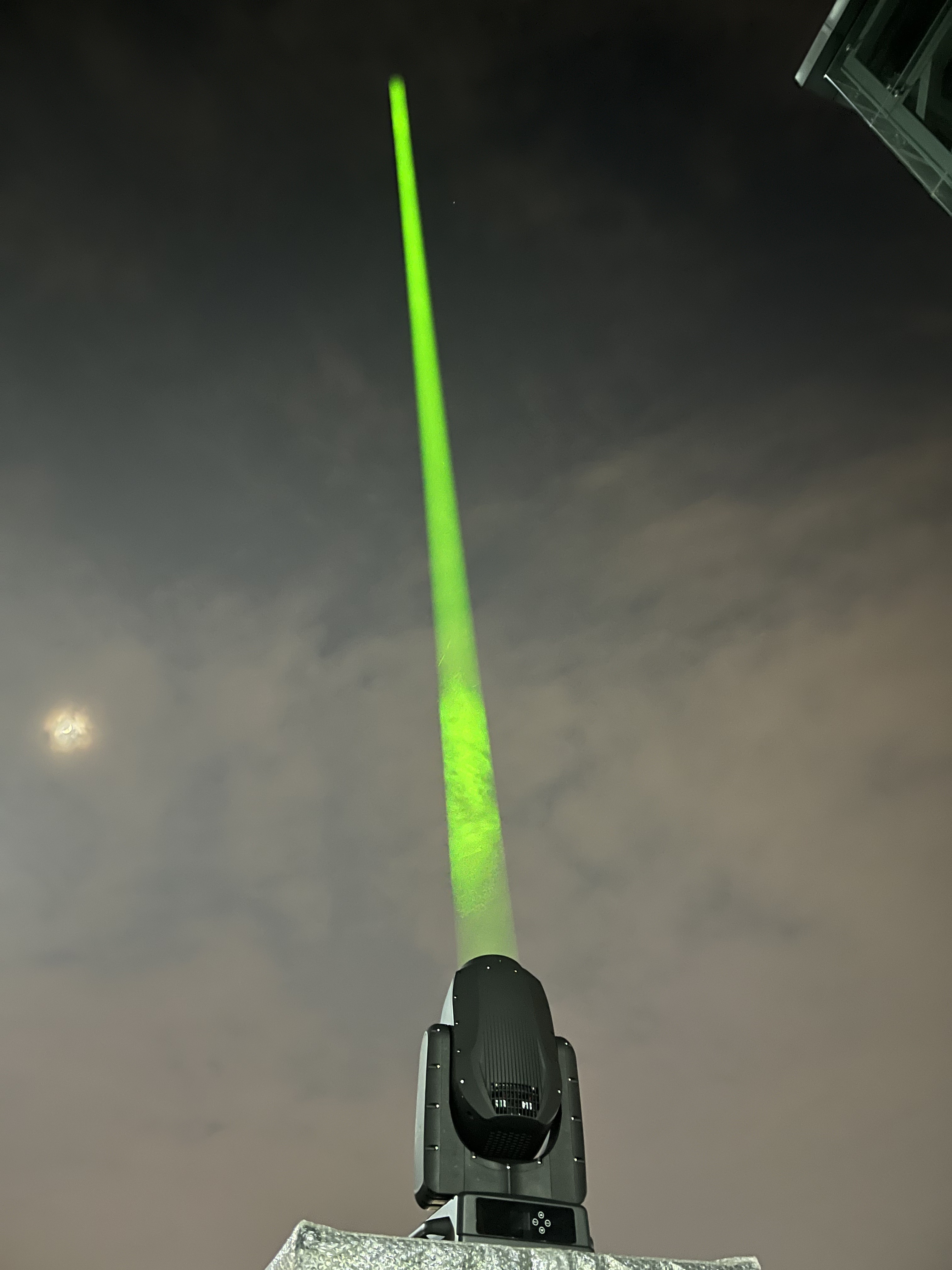

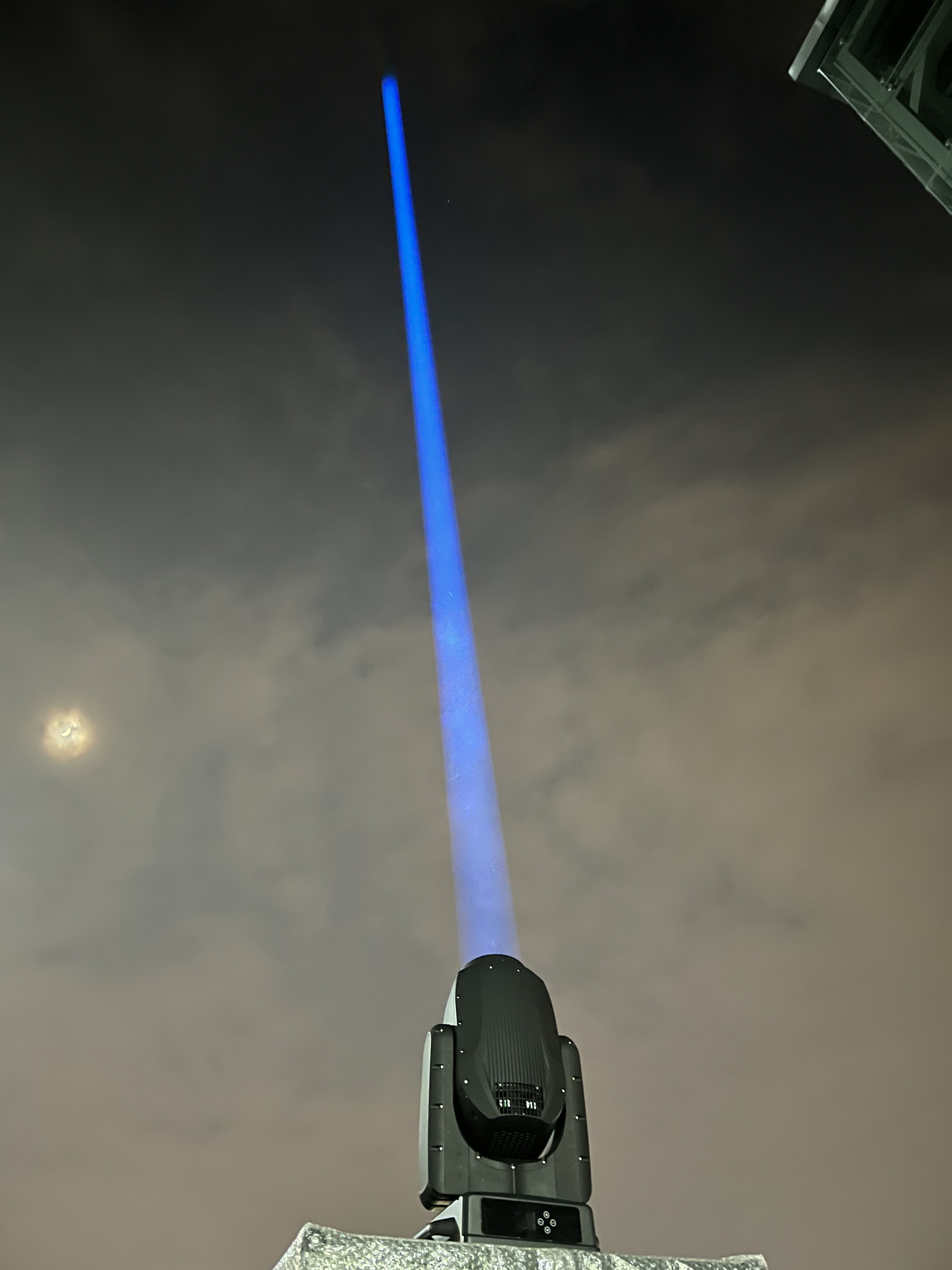

Beam Angle: 1°
Zoom: Electric zoom
Strobe: Electronic strobe function
Dimmer: 0 -100% smooth dimming
Color Wheel
14 color + white
Gobo Wheel
24 gobos , and the gobos can be changed at will
Prism Effects
Prisms: 8-facet + 16-facet rotating prisms
Prism Macros: Multiple built-in prism effects
Frost Filter
0-100% variable frost + color effect
Control
DMX Channels: 17CH/21CH
Control Mode: DMX512、Auto、Manual

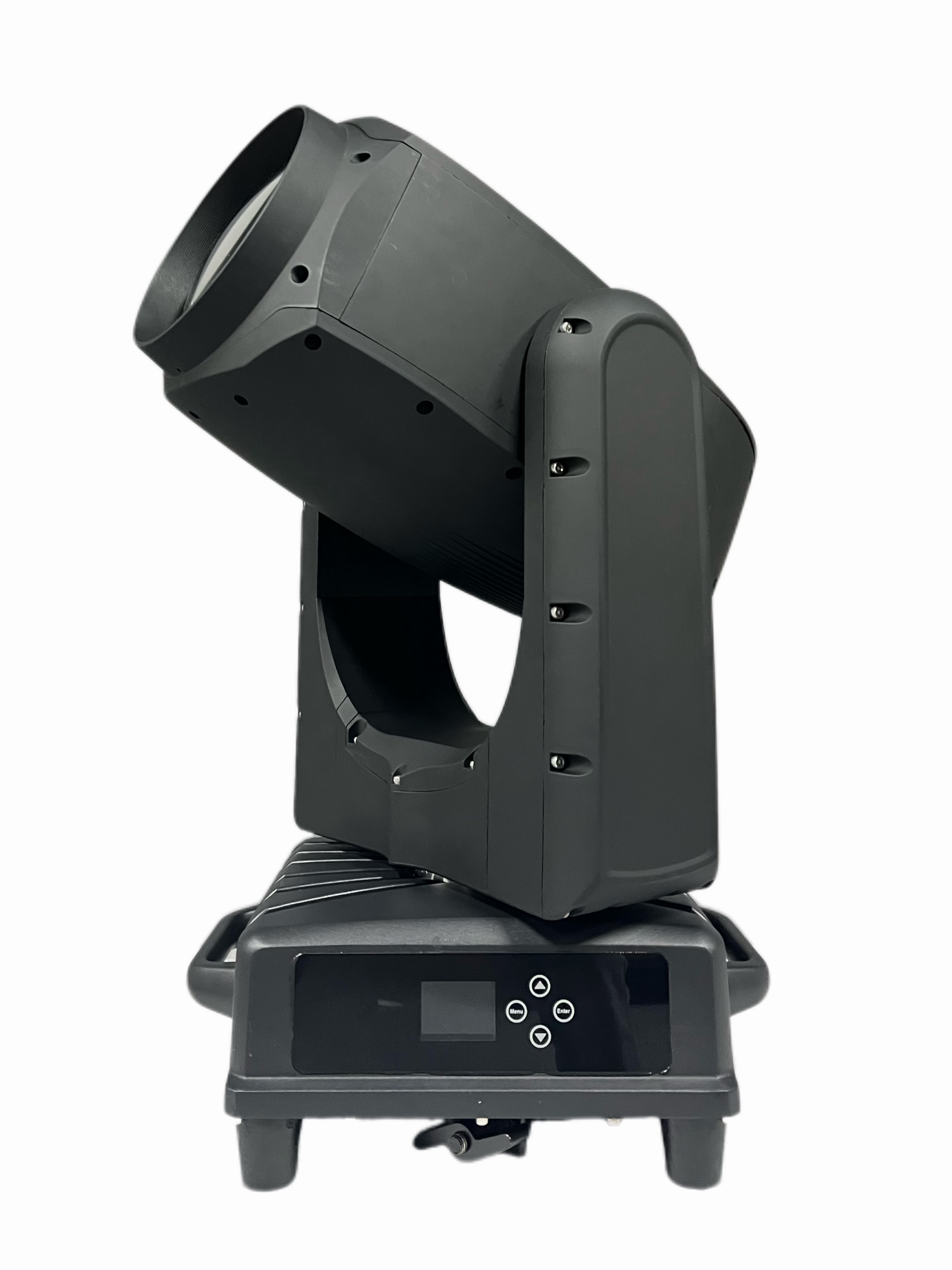

Display: Dot-matrix LCD with 180° invertible display
Pan & Tilt
Pan Movement:540°
Tilt Movement:270°
Auto Reset: Optical positioning system with auto-recalibration
Work Environment
Max Ambient Temperature: 45°C
Protection Rating:IP65
