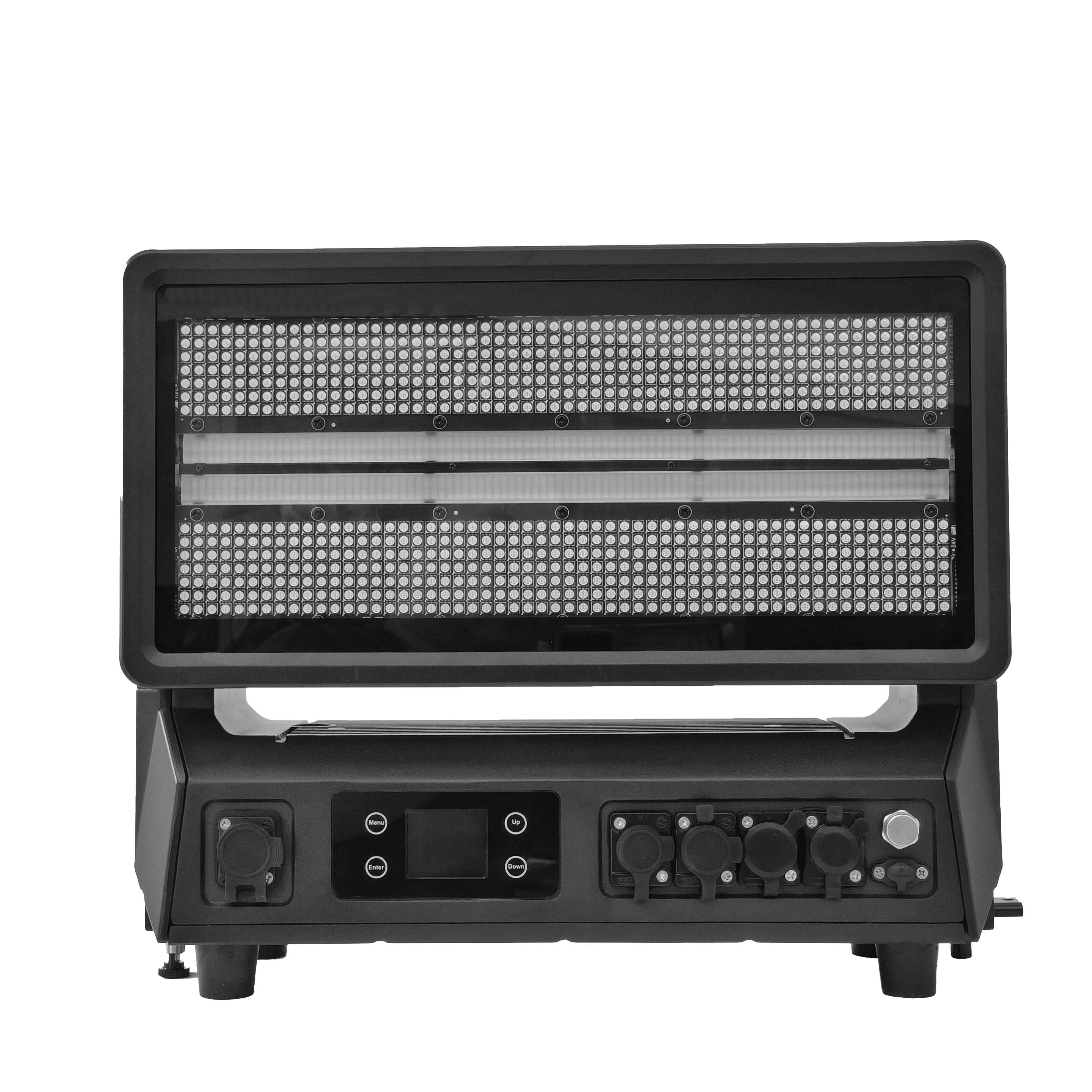

Light Source:
•Main light source: 392*1W cold white LED;
•Auxiliary lighting: 784*0.5W RGB LED;
•Average life:> 20,000 hours;
Control
•Protocols: DMX, Art-net, SACN, voice control, Auto 1, Auto 2
•Control Channels:8CH/11CH/13CH/24CH/30CH/47CH/68CH/74CH/97CH
•Firmware Upgrade: Upgrade via DMX link
•4 touch button control panel
•Display: OLED display
Pan & Tilt
•Tilt Movement: 185°
•Automatic Pan/Tilt position correction
•Resolution: 16 bit

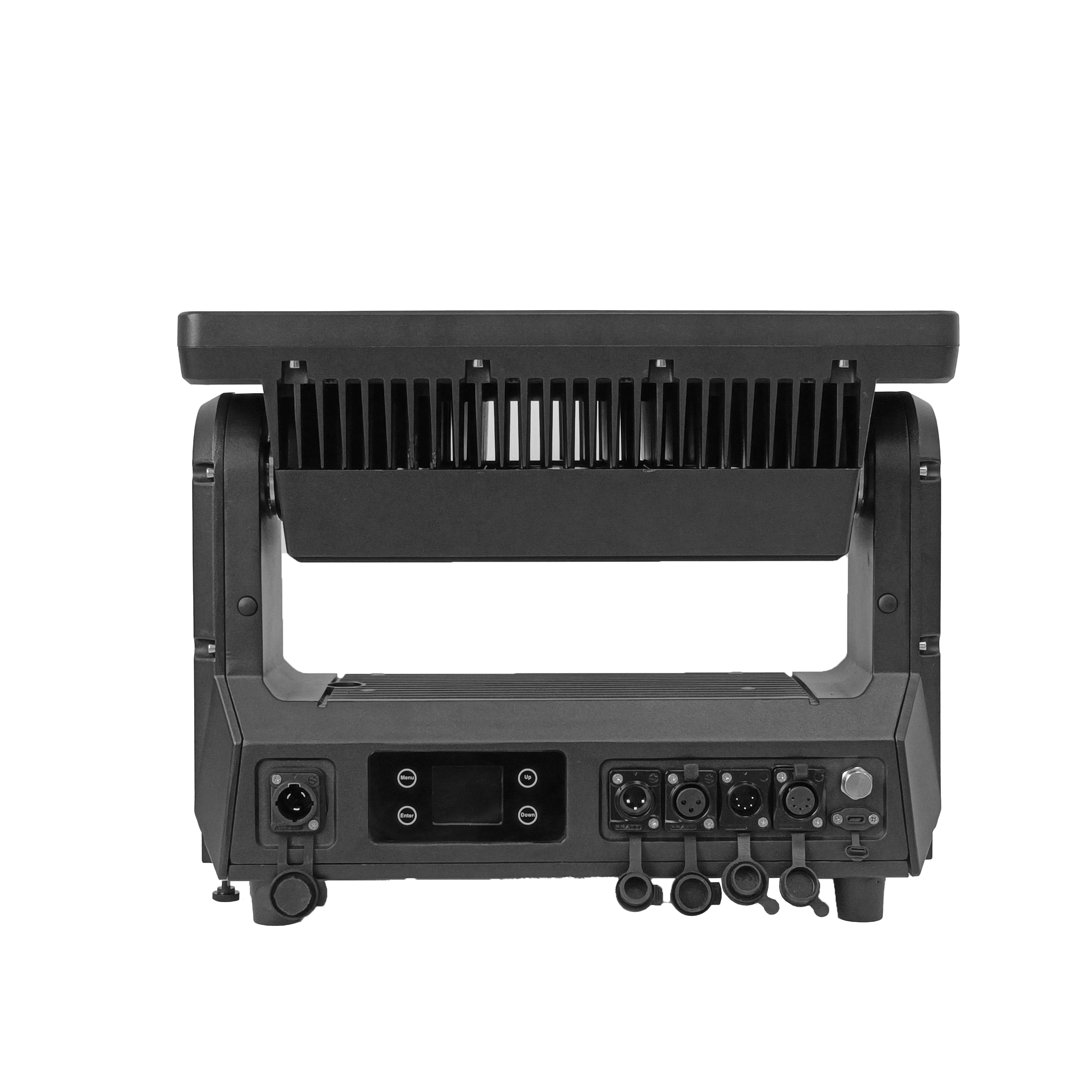

Electrical and Connectors
•Input Voltage: 100-240Vac; 50/60Hz
•Power : 1000W
•Power In/Out: Waterproof power connector in
•Data In/Out: 3-pin or 5-pin waterproof XLR
Other Effects
•Outstanding strobe effect with variable speed
•Smooth dimming 0-100% (4 user selectable dimming curves)

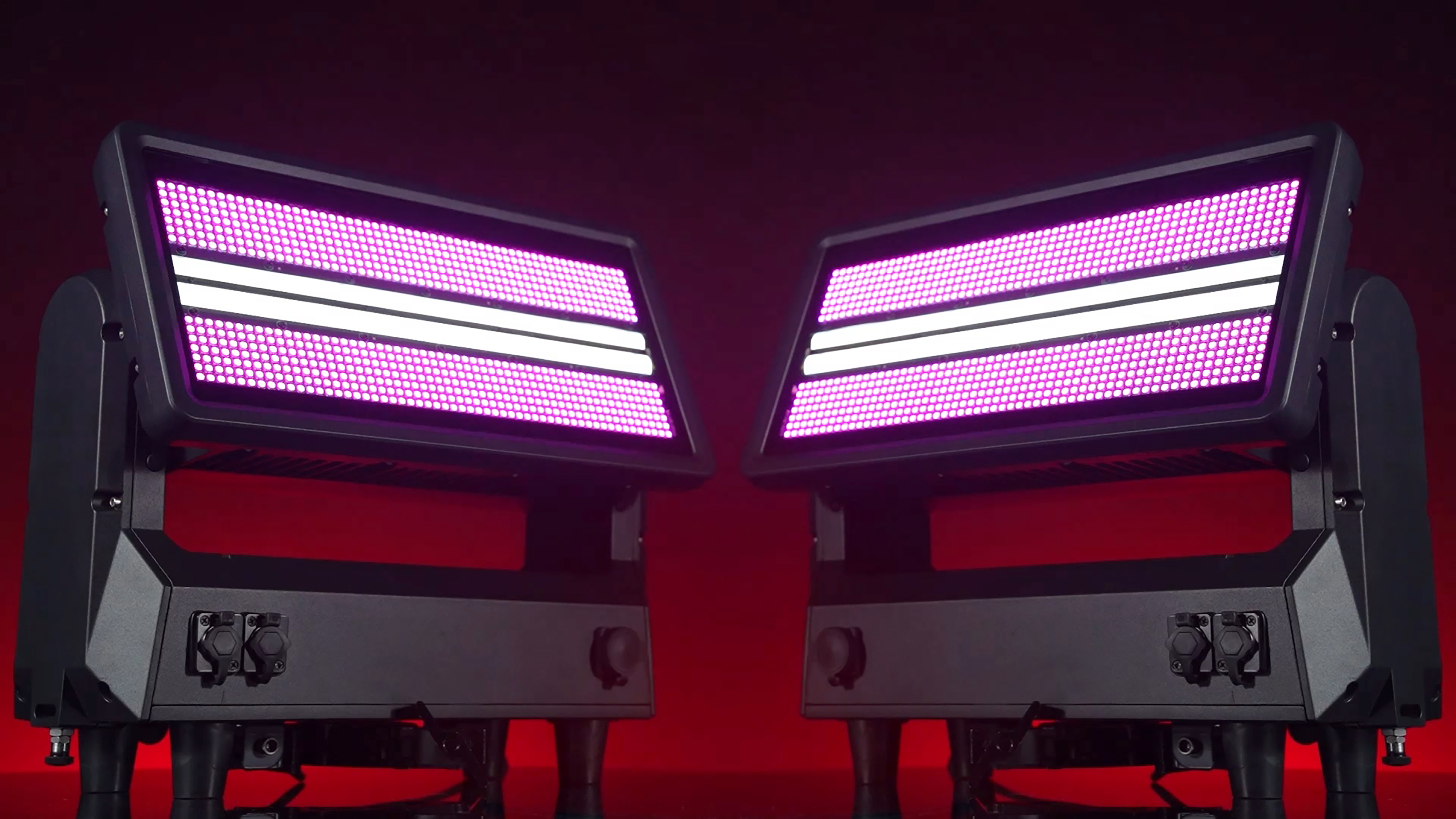

•Outstanding color mixing
•Combine Dot, Pixel and Strobe Lines in one
Work Environment
•Max Ambient Temperature: 40°C
•Mini Operating Temperature: -10°C

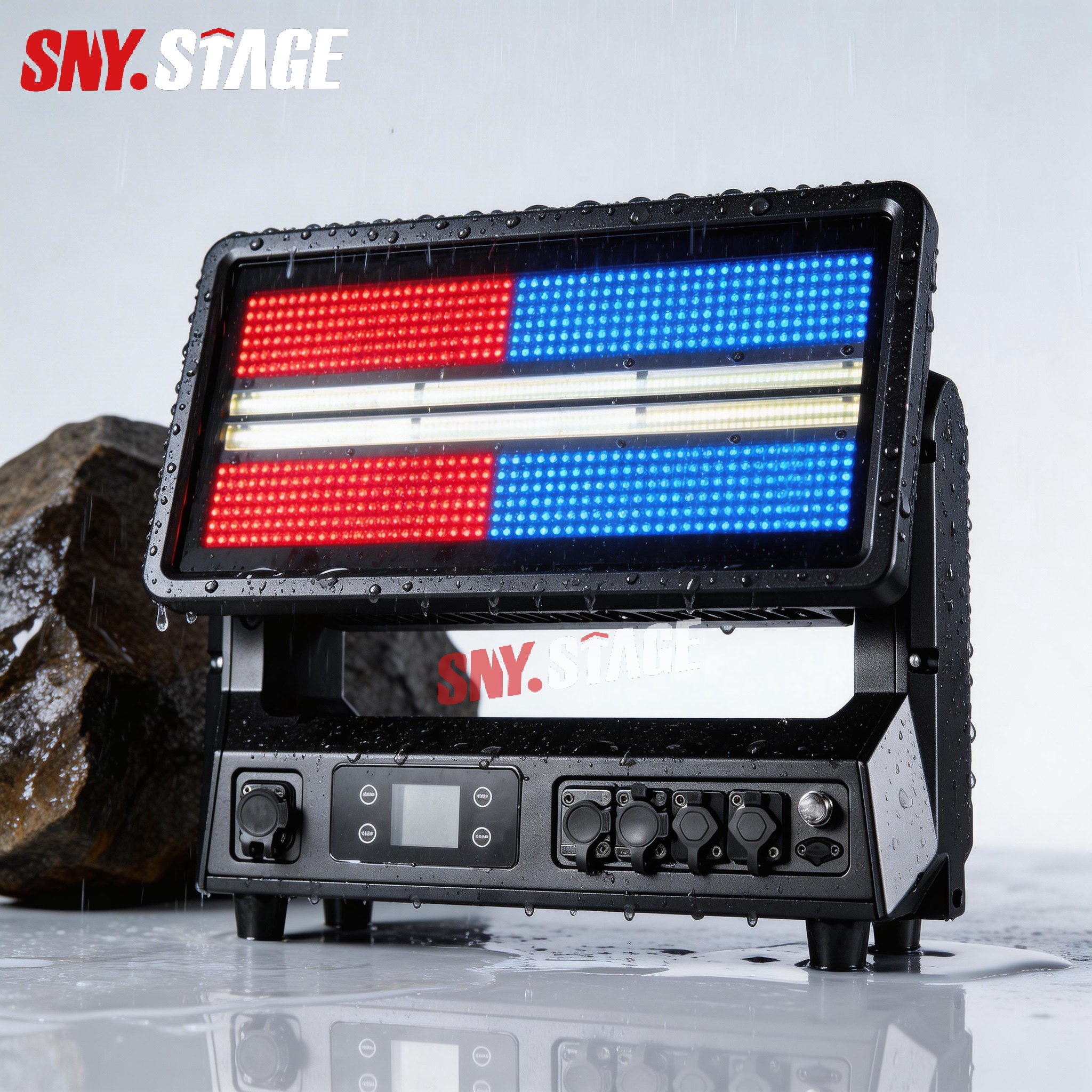

•Protection Rating: IP65

Fixture Dimensions:
•Size: 406*202*334mm
•Weight: 10.5 kg
