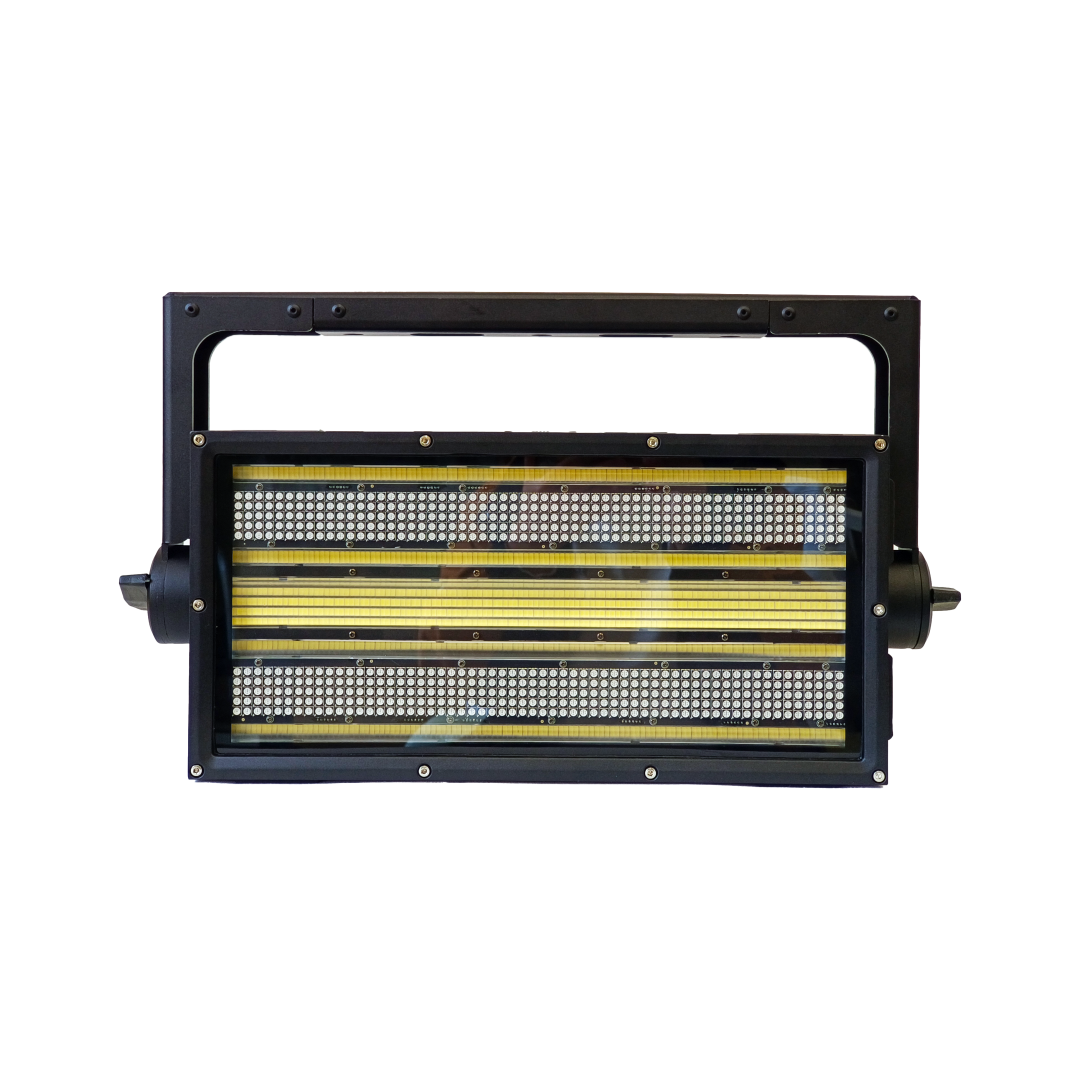

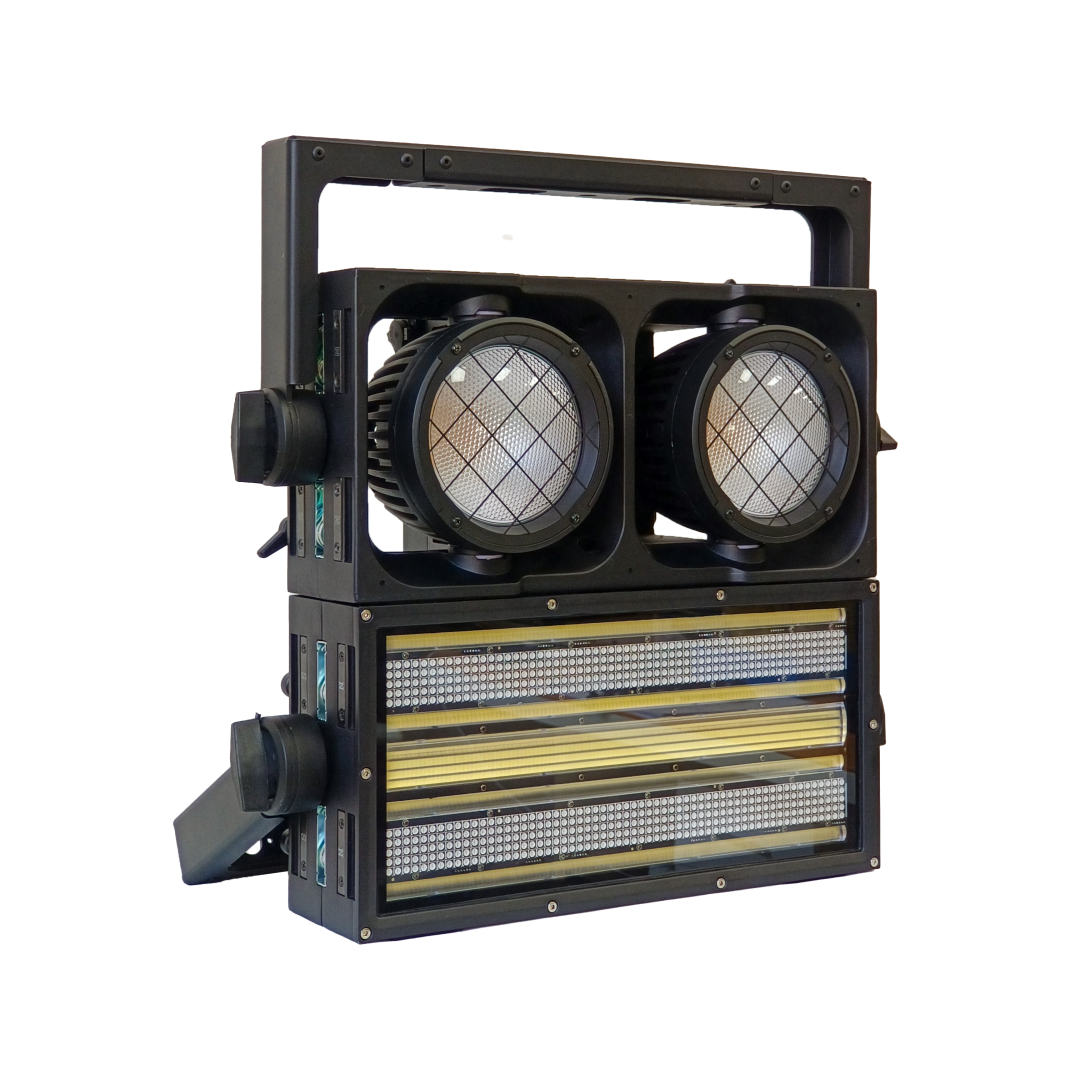

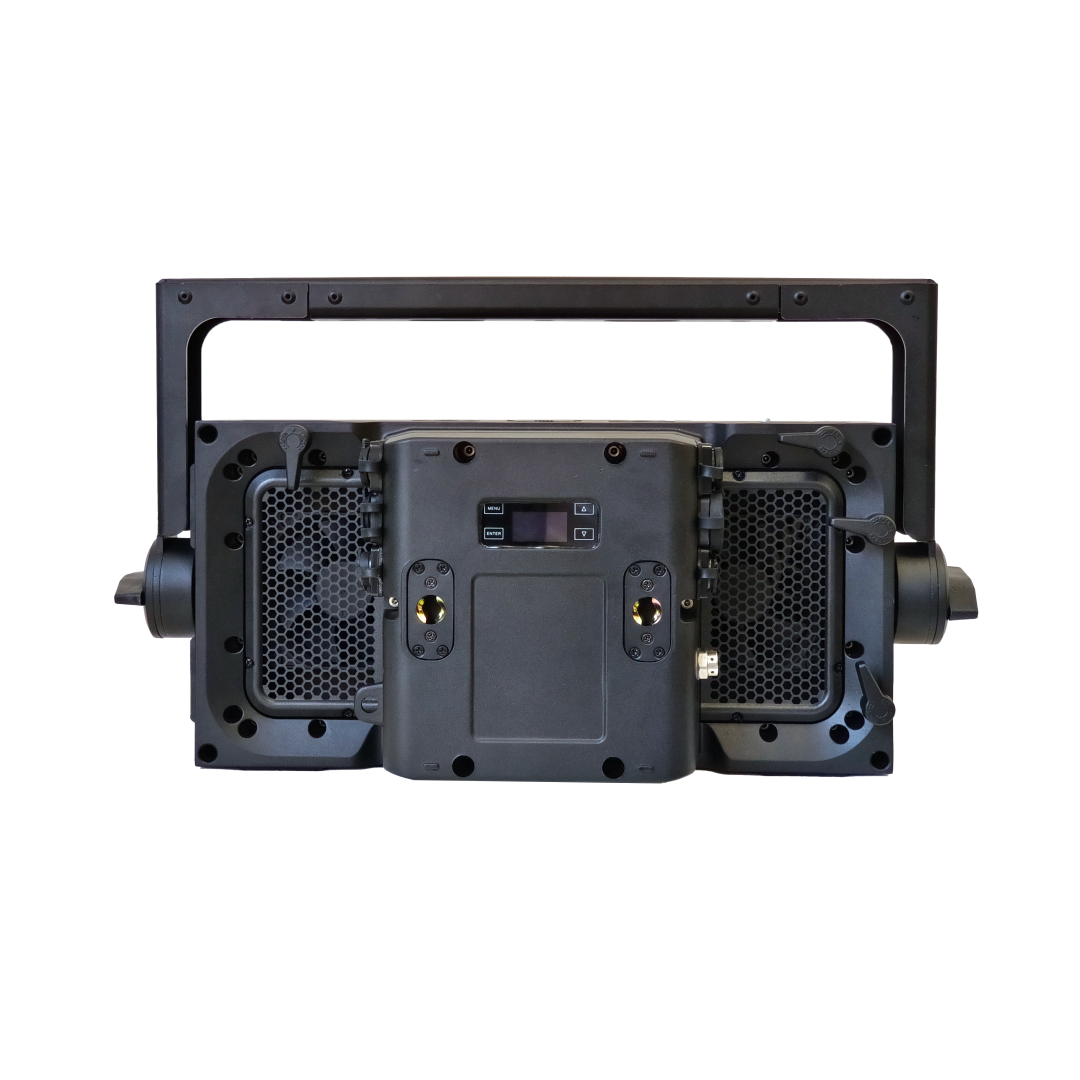

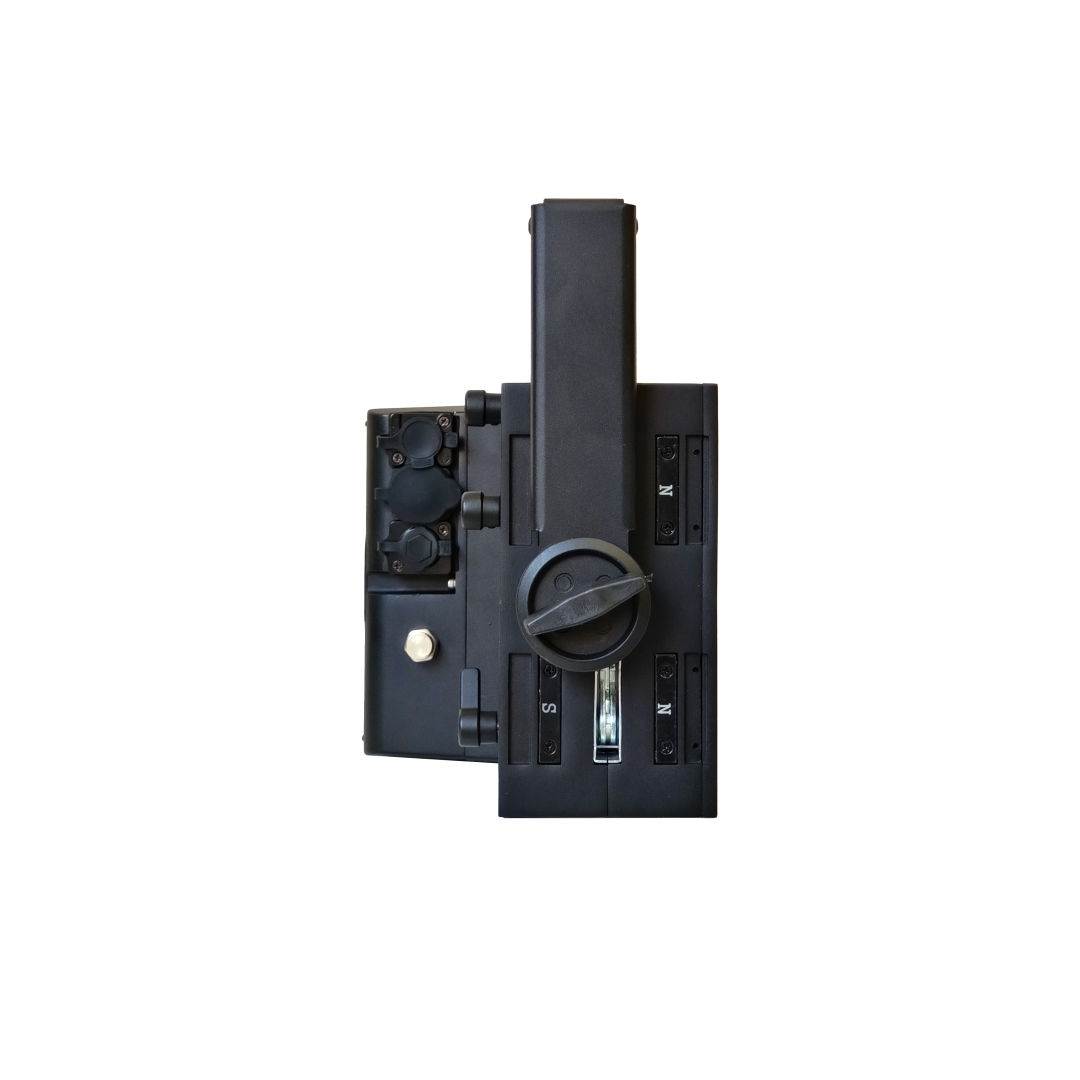

Waterproof outdoor 1000w led Strobe IP
Technical Parameter
Light source:
• Main light: 1080*1W 3535 white light beads
• Auxiliary lighting: 600*0.5W 5050RGB lamp beads
Other Effect
• Outstanding color mixing effect
• Dimming： 0%-100% smooth dimming
• strobe:0-30Hz
• 4x single strobe lines covered by elliptical lenses
Control
• Channel mode:15CH / 39CH / 71CH / 112CH / 178CH / 209CH / 275CH
• Control protocols: DMX512, RDM, Art-Net, SACN
• Software upgrade: Upgrade the software via DMX connection

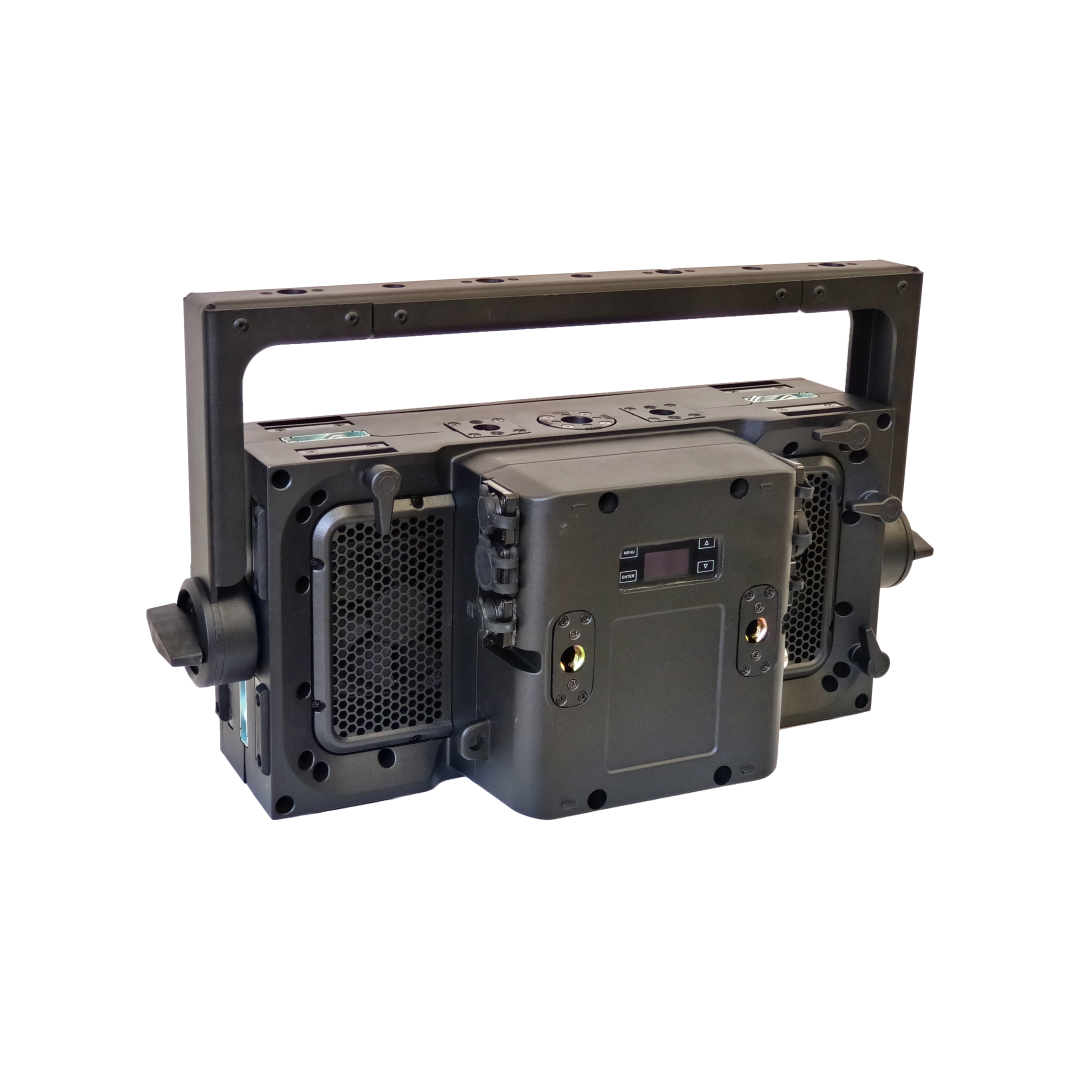

• Display: LED display screen
• 4 touch button control panel
Electrical & Interface
• Input supply: AC100-240V~, 50/60Hz
• power: 700W
• Power In/Out: Waterproof power connector in/out
• Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector
Work Environment
• Max Ambient Temperature: 40°C
• Mini Operating Temperature: -10°C
• Protection Rating: IP65
Fixture Dimensions:
• Size: 500*180*290mm
• Net Weight: 10 kg
