Input voltage: AC90-240V 50HZ/60HZ
Whole lamp power: 1200W
Light source specification: 24 RGBW 50W ultra high brightness light sources
Auxiliary light specification: 24 RGBW 6W
Expected lifespan: 50000 hours
Angle: 10 ° 25 ° 36 ° customizable
Color: Red, green, blue, white, multiple colors with infinite variations
Lamp bead control: RGBW independent point control
Vertical direction: 220 ° (16 bit precision scanning)
The Y-axis is driven by a high-speed silent 60 three-phase thickened motor, which makes the operation faster and smoother. In case of misoperation, it can automatically return to its original position and the vertical speed can be adjusted; Y-axis rotation function and reverse function; Using optical electromagnetic coding for high-precision positioning
Electronic strobe, 0.3-25 times/second
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Single control mode: 29CH (standard) 222CH, 314CH,
Dual control: 30CH, 144CH, 192CH, 240CH, 288CH
Multi layer control: 72+72CH, 72+96CH, 96+72CH, 96+96CH, 120+120CH, 120+144CH, 144+120CH, 144+144CH
Control mode, standard DMX512 protocol, RDM protocol
Power connection method: Power input/output, maximum connection quantity @ 2 units 230V, 1 unit 120V
Signal connection method: DMX512 input/output, supports network protocol Artnet
Display function: LCD touch screen, bilingual menu in Chinese and English, sensor fault display, temperature display

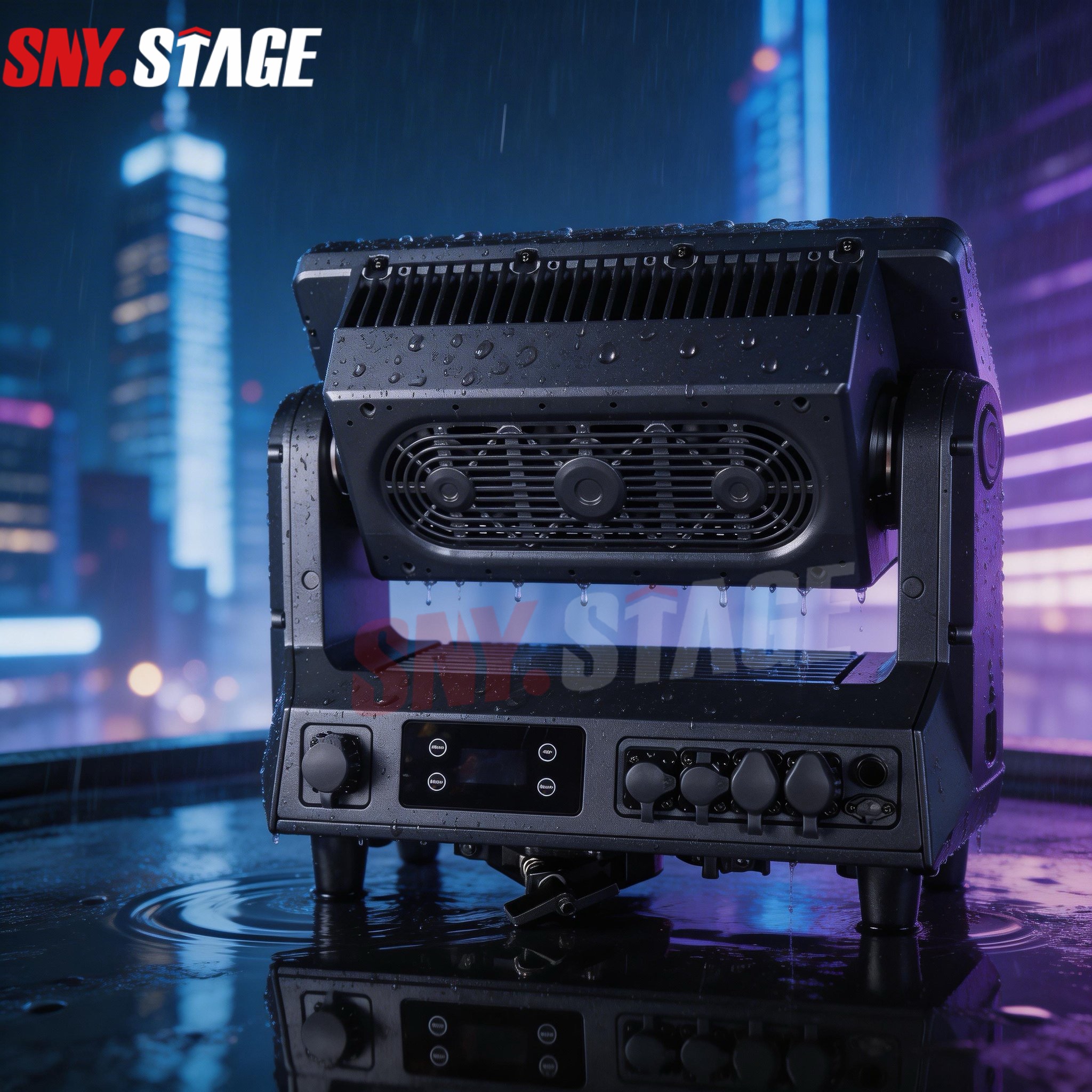

Cooling system: High conductivity lightweight aluminum radiator is used, and the intelligent monitoring technology of the fan automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent system/intelligent temperature and noise balance module
Protection level: IP65
Lamp packaging: waterproof and shockproof aviation box or cardboard box
尺寸规格信息
照度图信息
可选配件信息
Download information to be updated......
