POWER SUPPLIES
AC powerinput 100-240V, 50/60 Hz
INPUT POWER
600 VA @230Vac - 50Hz
LIGHT SOURCE
Source:Ushio Lamp 390W/Osram 371W
MOTORS
Stepper motors, operating with micro-steps,
totally microprocessor controlled
CHANNELS
31 control channels
INPUTS
DMX 512 – Art-Net
IP RATING
IP 20 - Protected against the entry of solid
bodies larger than 12mm (0.47”); No protection
against the entry of liquids.
SAFETY SPECIFICATIONS
Minimum distance of illuminated objects 8 meters
Minimum distance from flammable materials 0.2
meters
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C
(194°F)
Automatic break in power supply in case of overheating
Forced ventilation with axialfans
ELECTRONICS
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server
OPTICS
Zoom 3°
-
36°, Linear and motorized
EFFECTS SECTION
Six beam reducers(down to 0.5°)
CMY color mixing
15 colors in 3 wheels
2 CTO filters
Rotating Gobo Wheel: 8 interchangeable glass
gobos
Static Gobo Wheel: 18 fixed gobos
Rotating4-facet prismondedicated channel
Rotating8-facet prismondedicated channel
Dynamic Animation disc
Linear soft edge frost filter
Dimmer and stop/strobe
Dense,Sharp,ParallelLightBeams
Extremely quick movements
Excellent visual effect projections
Wide and sharp aerial effects
CONTROL AND PROGRAMMING
DMX 512 control channels
Control signal USITT DMX512
Protocols RDM, WebServer and Art-Net
DisplayGraphic LCDbacklit b/wDisplay
Display battery Long life self-charging buffer
battery
Pan/Tilt Resolution 16 bit
Focus Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit

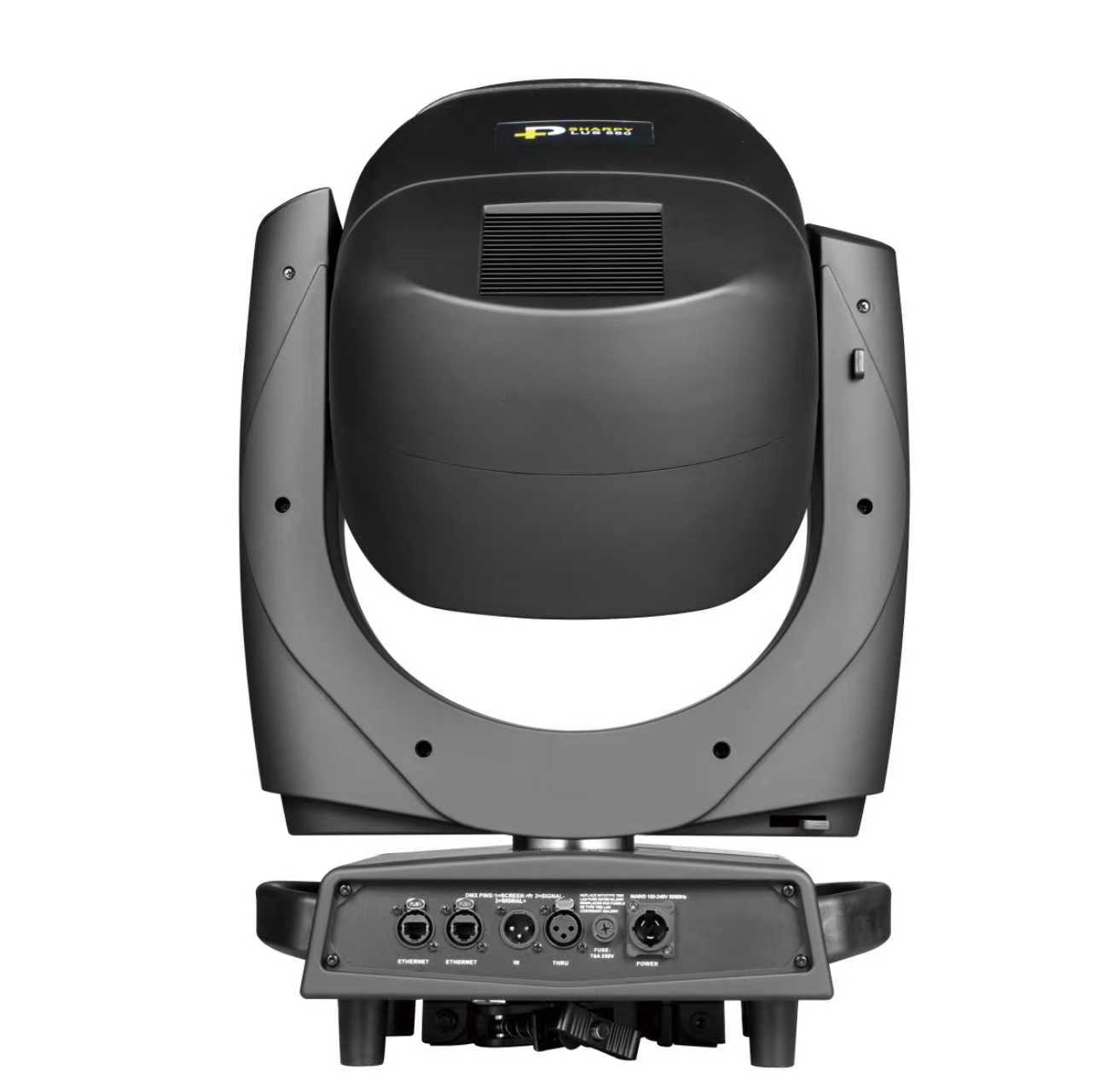

DMX signal connection 5 pole XLR input and output
Ethernet Input
Firmware update Software upload through
Ethernet input
BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation Device
locking PAN and TILT mechanisms for
transportation and maintenance
MOVING BODY
PAN range 540°
TILT range 270°
WORKING POSITION
Working in any position Hanging system: with
fast-lock omegaclamps (1/4turn) onthebase
CE MARKING
In conformity with the European Directives:
＆#8226; 2014/35/EU - Safety of electrical equipment
supplied at low voltage (LVD)
＆#8226; 2014/30/EU - Electromagnetic Compatibility
(EMC)
＆#8226; 2011/65/EU- Restriction of theuseof certain
hazardous substances (RoHS)
＆#8226; 2009/125/EC - EcoDesign requirements for
Energy-related Products (ErP)
WEIGHT & DIMENSIONS
23.0 Kg
