Model: SY-2515ZOOM

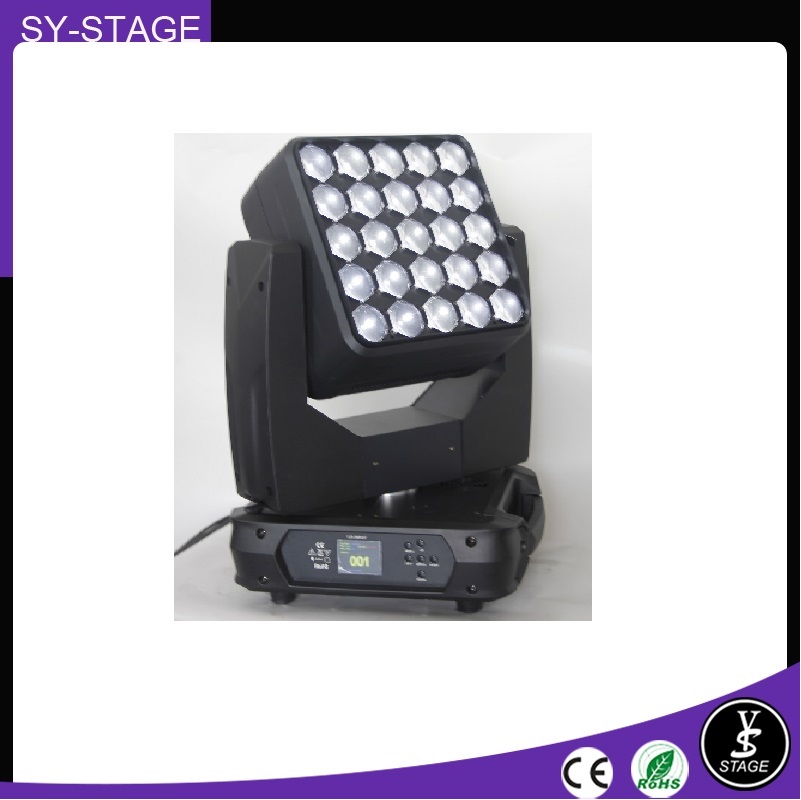

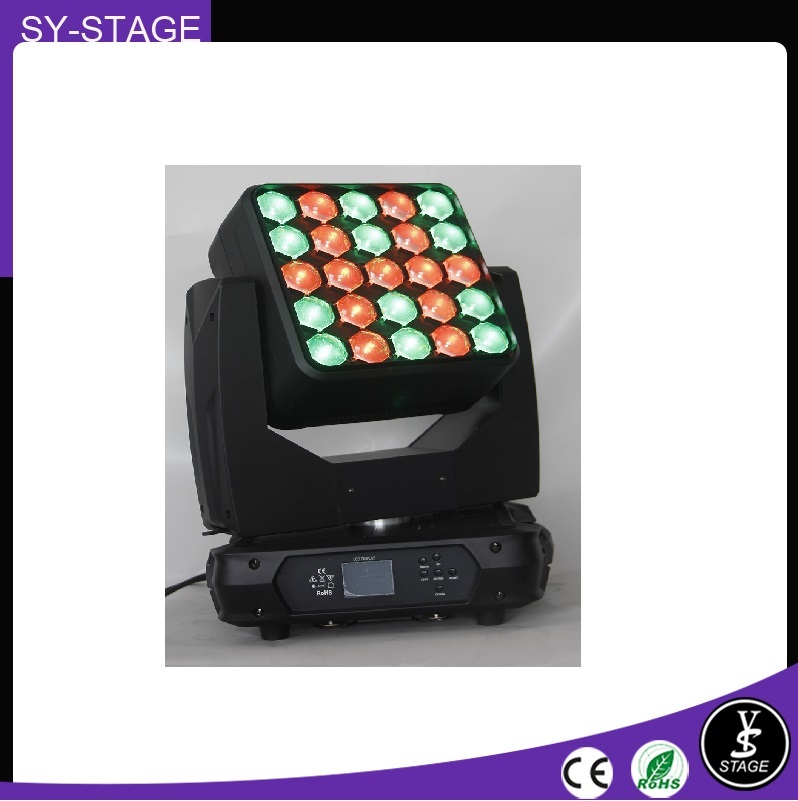

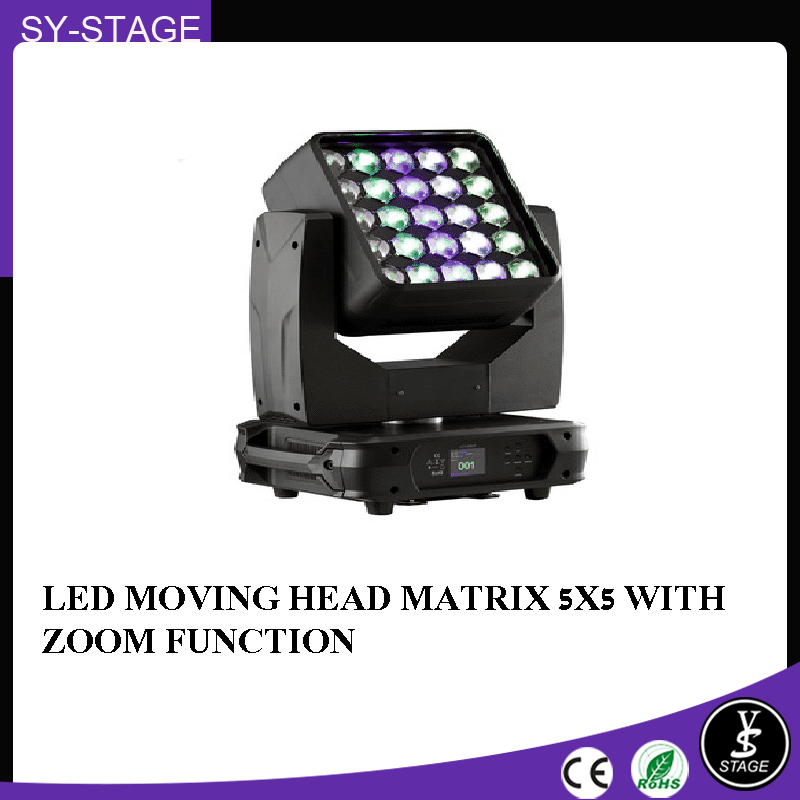

5X5 Rotating Zoom LED Matrix Moving Head
Light Source
25 pcs 15W 4in1 RGBW Led
Power consupmtion:484W
Voltage:90V-260V,50/60 Hz
beam angle:7.5°-60°
Control
Control Mode:DMX512/ArtNet/RDM/Master-Slaver/Auto-Run/Sound
DMX channel:13/24/88/113 CH
ArtNet Channel:75/100 CH
Pan/Tilt
Pan/Tilt:360° infinite rotating
Pan/Tilt Resolution:8/16 bit
Construction
Display: 180° reversible color LCD display
6 control button
Data Socket: 3-pin & 5-pin XRL socket
Power Socket: PowerCon in
Double quick Lock system bracket
ArtNet in/Out connector
Feature
Dimmer:0-100% smooth dimming; two dimmer mode in optional (delay or without delay)
Outstanding color macro effect
Fast, quiet operation and flicker free
Led temperature protection & Fan run speed automatic based on the head temperature
Led single controlled, can display numbers,letters and arrows beam & wash effect switch freely
ArtNet in/out Control with IP address can be auto search; RDM
