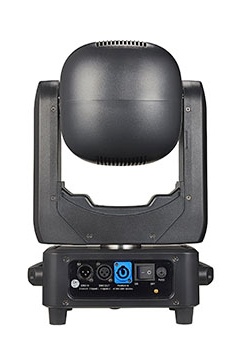

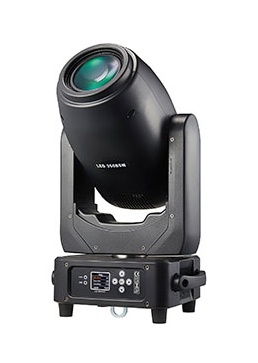

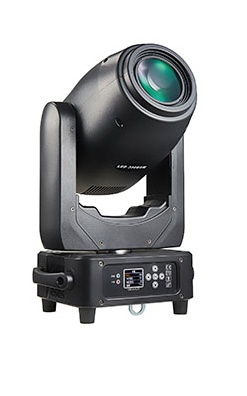

LED 280W BSW 3in1
Model: ZL-280SW
Product size: 30 * 20.5 * 54CM
Product weight: 13kg
Carton size: 55 * 42 * 42, gross weight: 15KG,
Aircraft box size: 780 * 410 * 720, weight: 56kg
Technical parameters:
Input voltage: AC110V -240V 50-60HZ
Light source specification: 250W
Light source lifespan: 50000 hours
Rated power: 350W
Channel mode: 17CH
Horizontal scanning: 540 degrees (16 bit precision scanning) with electronic error correction
Vertical scanning: 270 degrees (16 bit precision scanning) with electronic error correction
Dimming system: 0-100% linear adjustment
Atomization system: 1 independent atomization effect, soft and natural light spot
Magnification angle: 9-42 degrees
High speed strobe: 0-30 times/second, adjustable speed strobe effect
Color: 9 colors+white light
Fixed pattern: 9 fixed modes+white light
Rotating pattern: 7 glass patterns+white light, each glass pattern can independently rotate forward and backward
Prism system: Standard 3 prisms, capable of independent forward and reverse directions
Macro functions: console reset function, autonomous mode, master-slave mode
Display mode: button operation mode
Control signal: international standard DMX512, with RDM function, can be upgraded online software, dial address code
Cooling method: using axial flow fan to enhance cooling
Appearance material: High temperature resistant plastic
Working environment: -20 ° C to 40 ° C
Protection level: IP20
