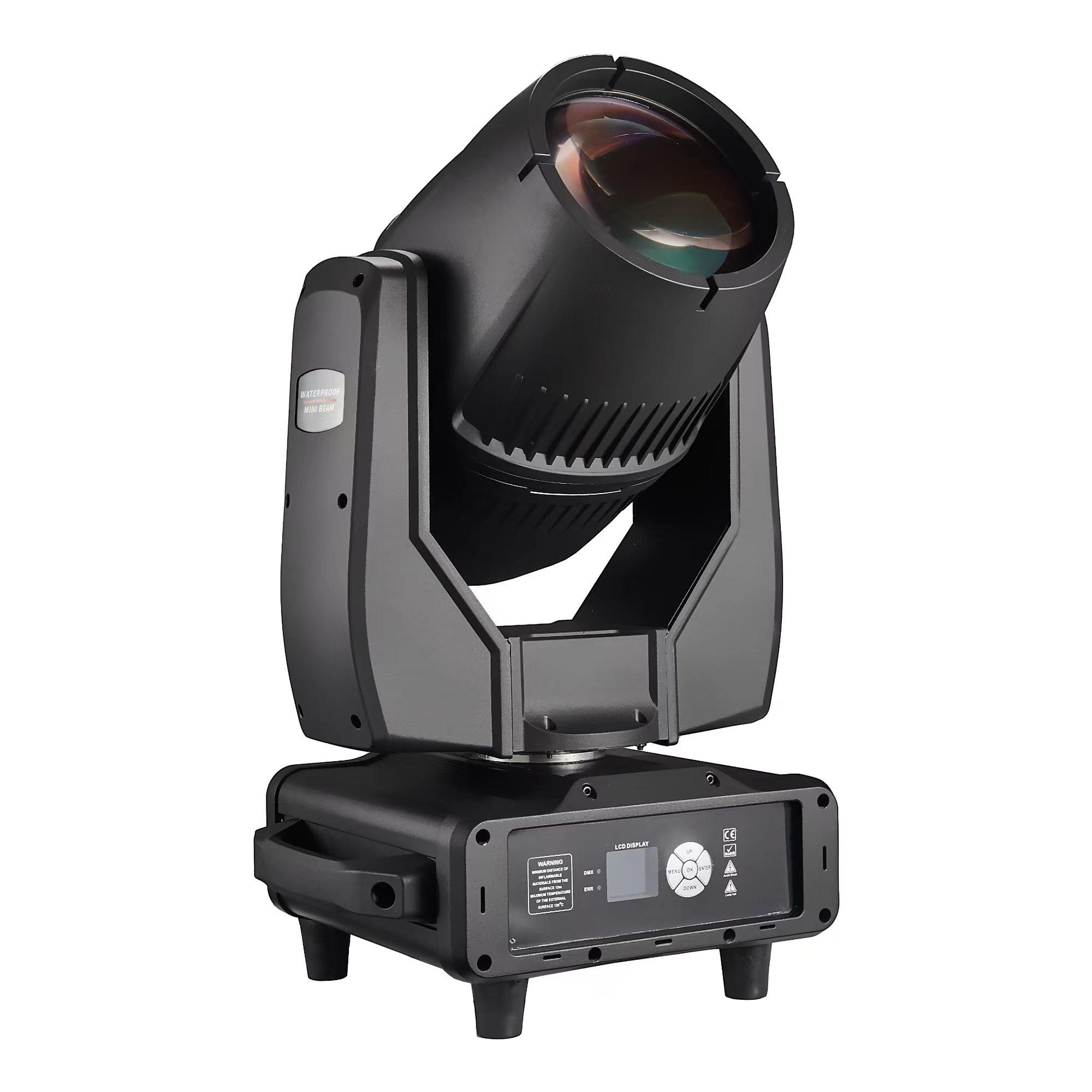

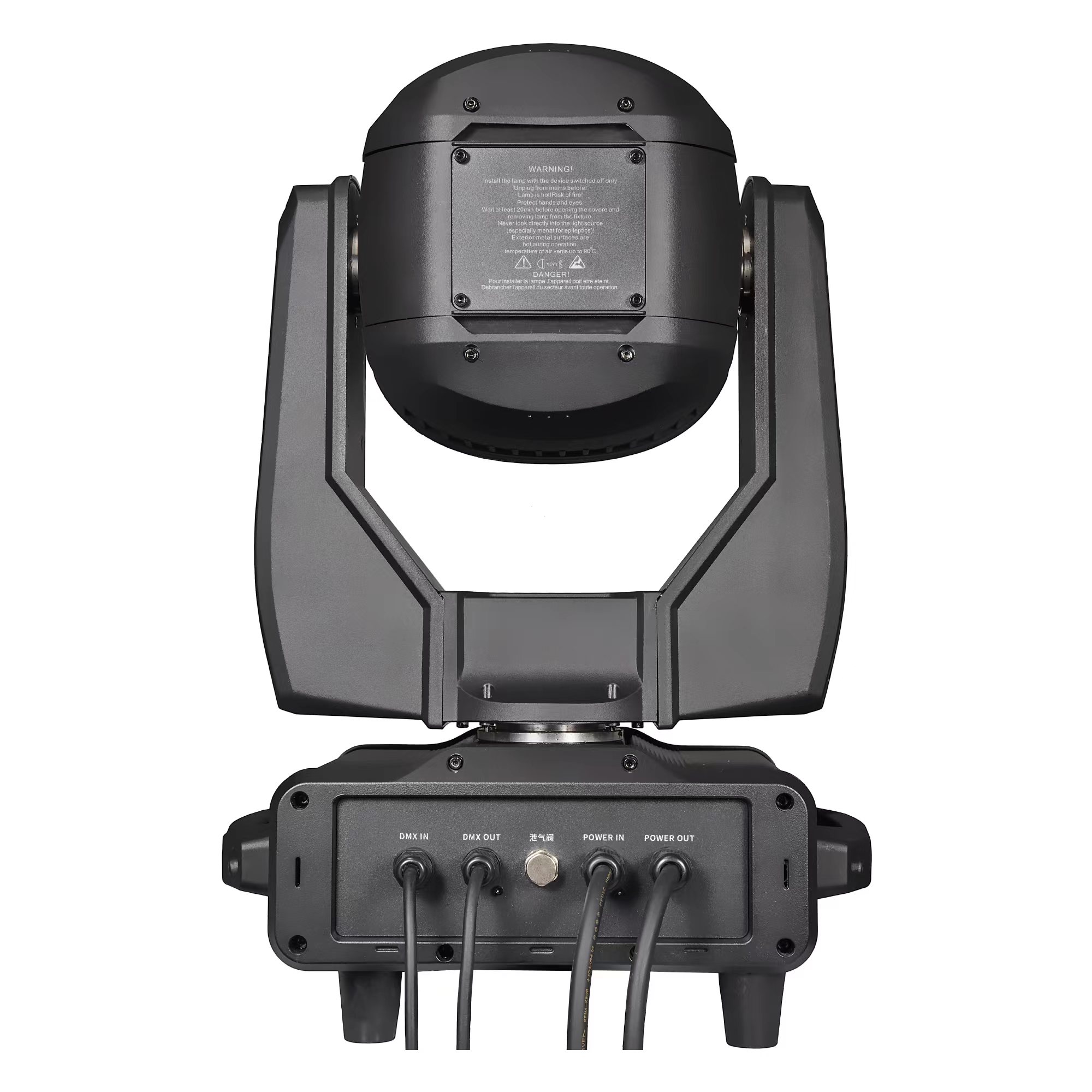

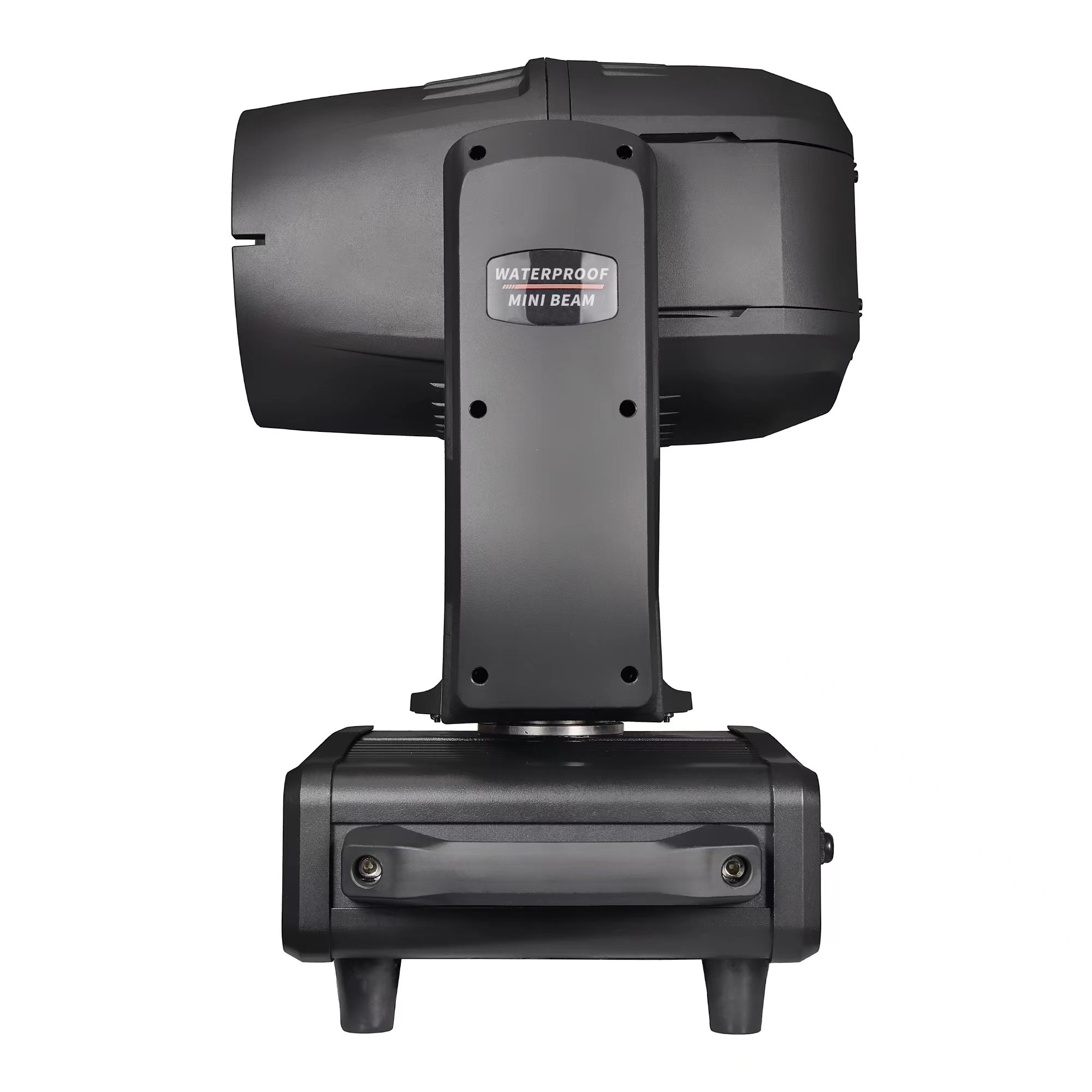

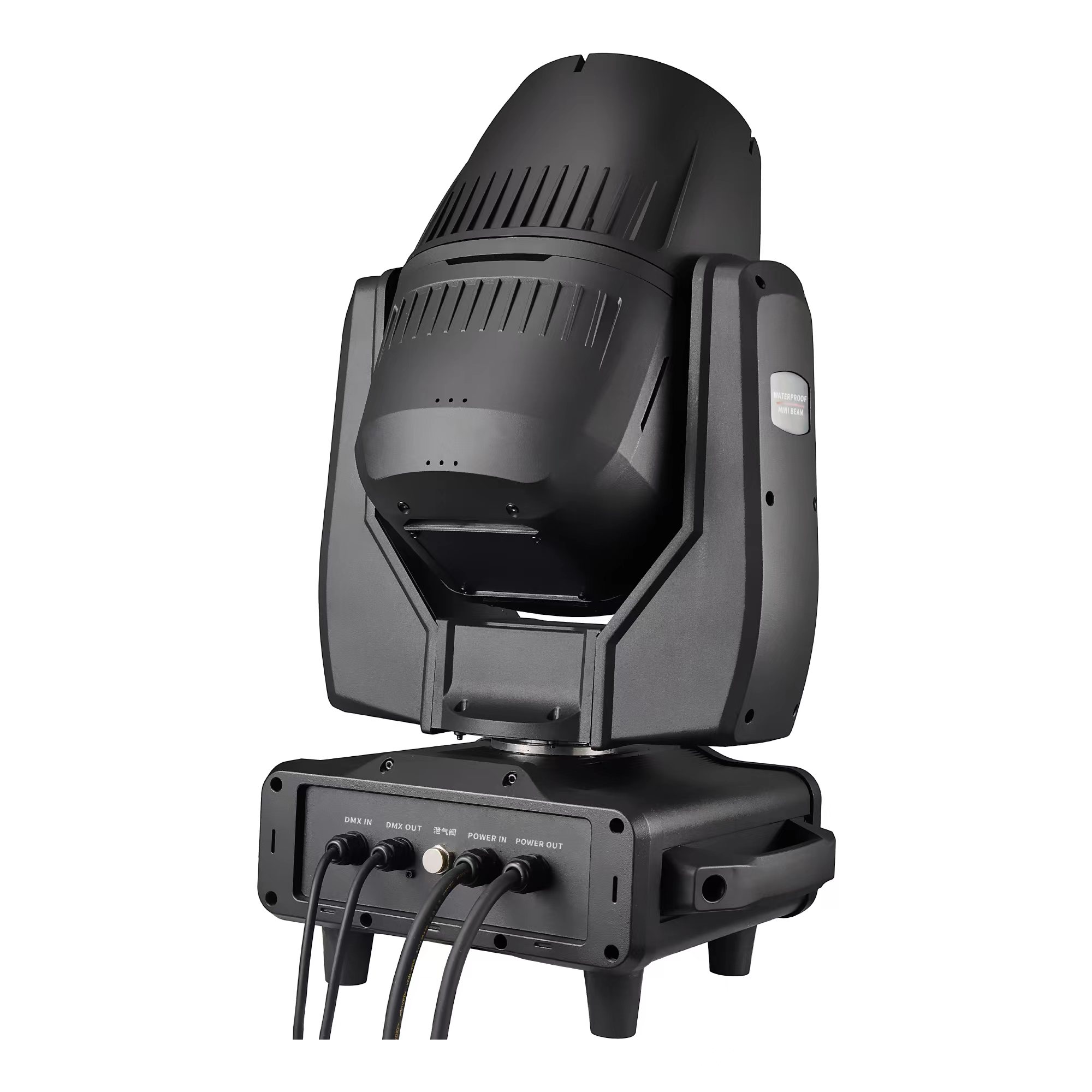

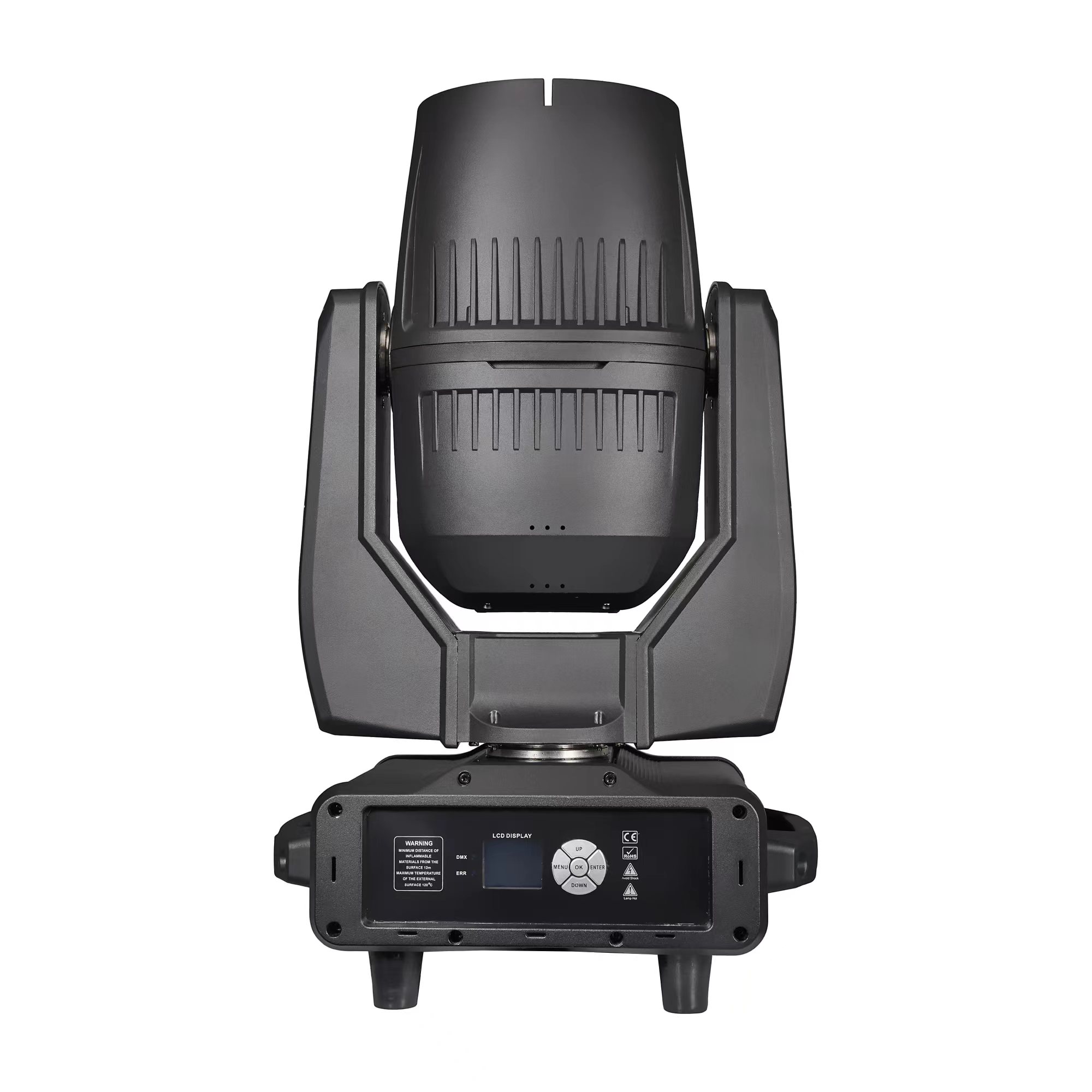

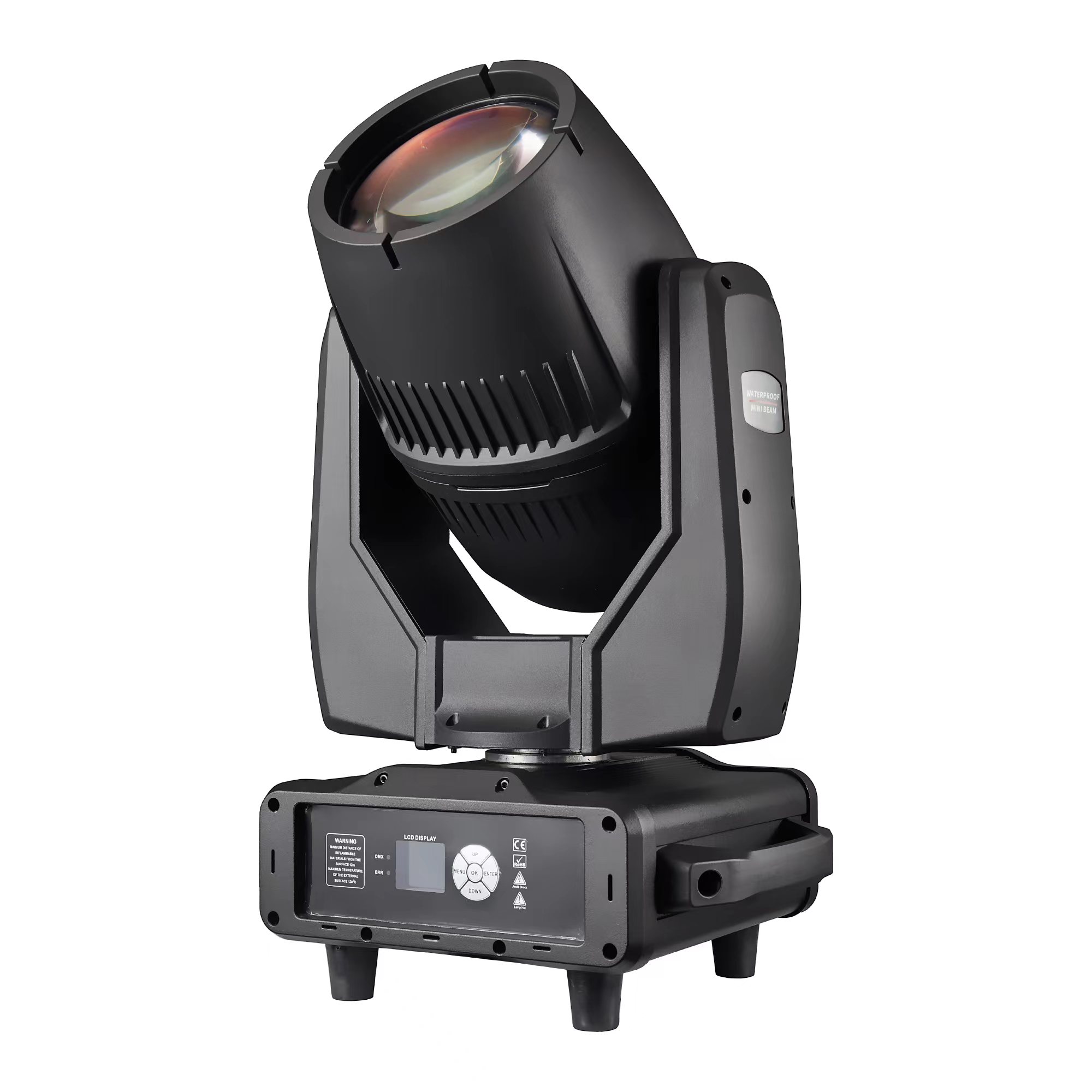

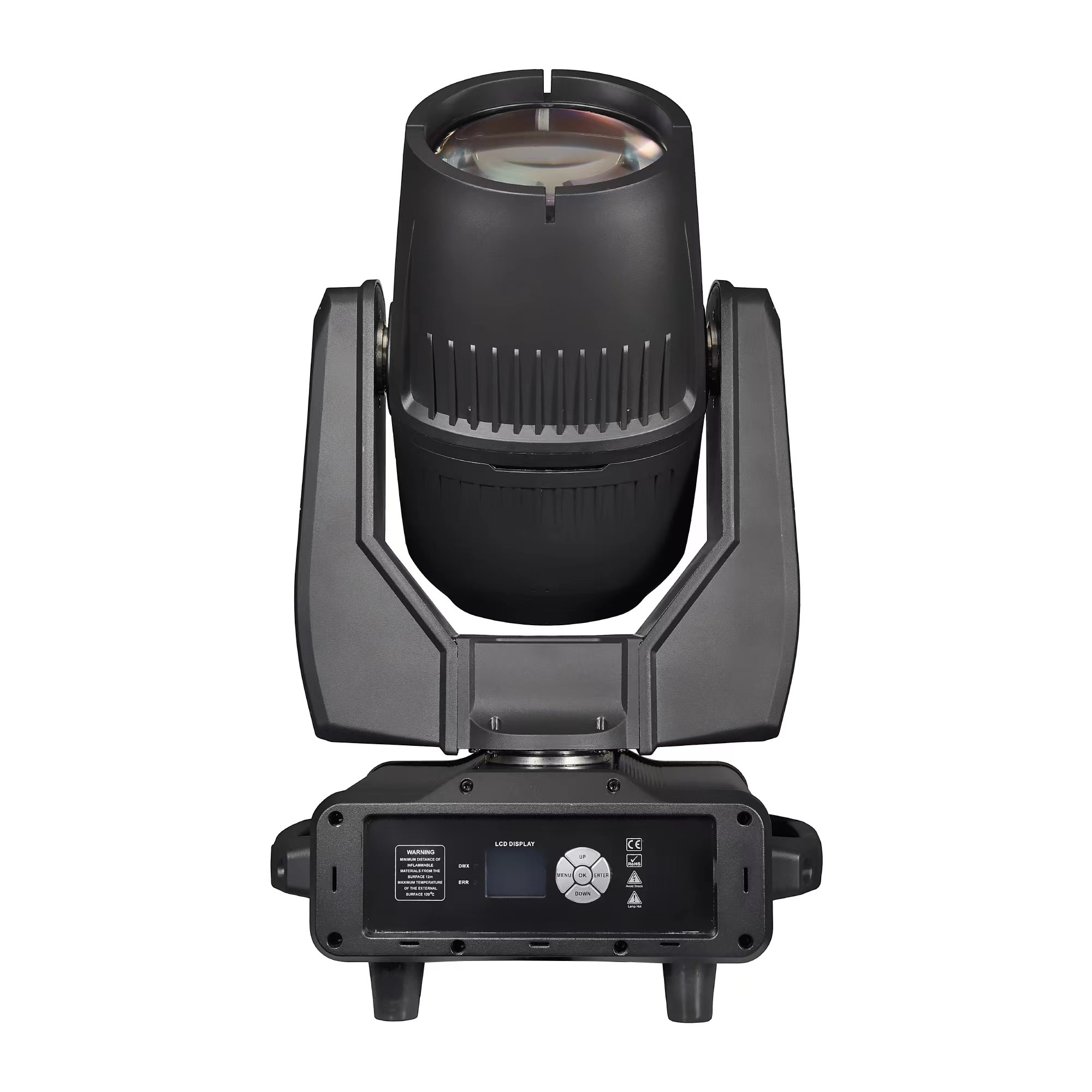

Mini waterproof 350w moving head beam light
Technical parameters:
This outdoor mini waterproof beam light features a lightweight design, weighing only one-third of traditional lighting, greatly reducing the burden of transportation and installation. No matter how it is installed, it can be done freely and easily, making your performance more flexible. Unique waterproof structure design, suitable for various outdoor environments.
Latest motherboard program: Supports RDM function, built-in program: Built in multiple effect programs, can achieve single beam white left and right slow swing, single beam color changing left and right slow swing, and multi beam color changing left and right slow swing.
Voltage: Wide voltage 110V-240V 50-60Hz
Light source: 380W Power: 480W
Color: Color palette: 13+1+Rainbow effect+Atomization function
Pattern: Pattern plate: 13 fixed patterns+1 white light
Focusing: Electronic linear high-definition dynamic focusing, using high-density glass optical lens.
Linear dimming curve: 0% -100% linear dimming
Beam angle: 1.8 °
Channel: 16/20 international standard DMX512 channels.
XY motor: Three electric drives, powerful, faster, more stable, and quieter
Control mode: DMX 512, self-propelled, master-slave self-propelled
Double Prism: 8-Prism/8+16 Prism Stacked for Rotation, Macro Function
The fan drive has excellent performance and extremely low noise.
Control mode: DMX 512, self-propelled, master-slave self-propelled
Display screen: LCD display screen adapts to different installation positions
Horizontal/Vertical: Waterproof lamps can be scanned horizontally at 540 ° or vertically at 270 °, with fast and stable speed,
The lighting fixture is equipped with an intelligent photoelectric reset correction system, which can automatically respond to accidental misoperation
The original location. In addition, it has horizontal and vertical locking buttons, making maintenance and transportation more convenient.
Cooling system:
Using CFD software to analyze and calculate the heat flow of lighting fixtures, and design a low-noise heat dissipation system
The fan drive has excellent performance and extremely low noise.
Waterproof rating: IP65
Net weight: 19.5 Kg Dimensions: 353 * 355 * 570mm
Appearance: The lamp adopts full die casting+high-strength engineering nylon plastic, which is UV resistant, high temperature resistant, anti-aging, lightweight, and adopts wind direction drainage and temperature intelligent monitoring technology, so it can dissipate heat quickly!
Features: No weakness, compact appearance, huge energy, thick light pillar
The waterproof beam lamp meets high industry standards in terms of optical, structural, and appearance performance. It uses advanced technology for high brightness light sources, optical technology, and rigorous industrial design to ensure the perfect presentation of lighting design.
