PRODUCTS

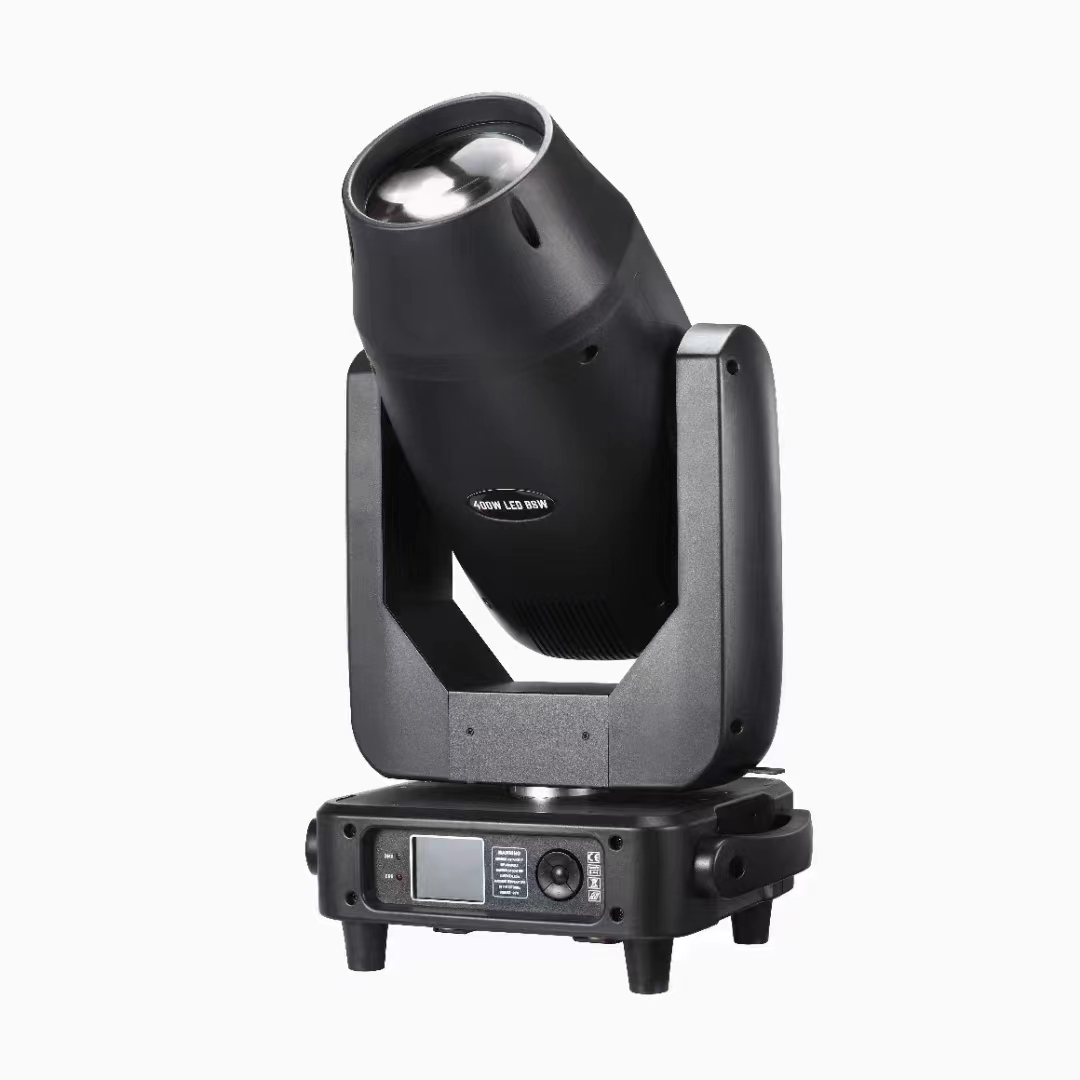

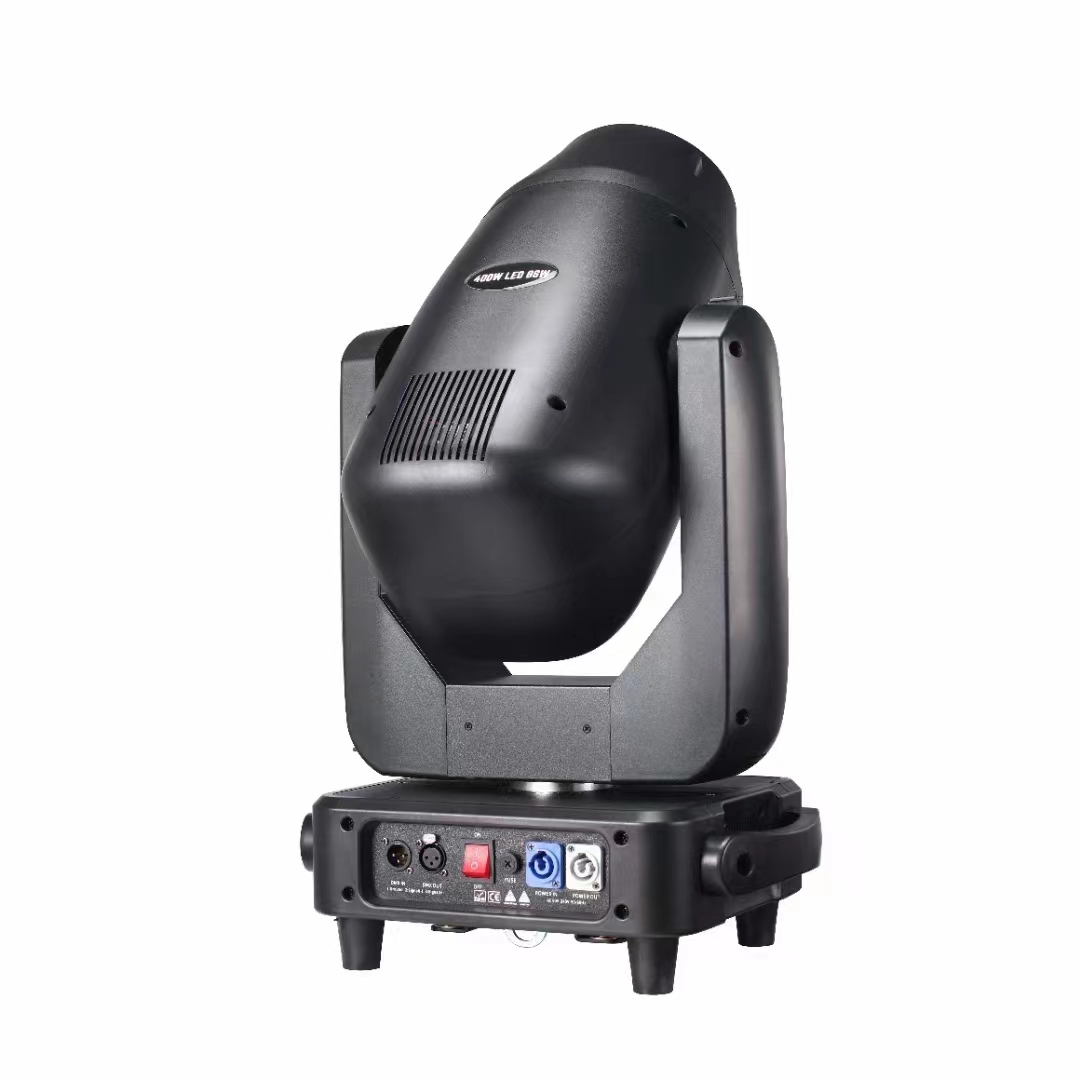

400W led moving head beam spot wash 3in1+CMY
Color temperature: 8000K Color rendering index: 75
Input voltage: AC110V-240V/50-60HZ
Light source specification: 400W white LED module
Light source lifespan: 50000 hours
Luminous illuminance: 4 meters, 80000 lm
Rated power: 430W
Channel mode: 22 channels
Horizontal scanning: 540 degrees (16 bit precision scanning) with electronic error correction
Vertical scanning: 270 degrees (16 bit precision scanning) with electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: Linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Magnification angle: 4-35 degrees
High speed strobe: 0-30 times/second. Adjustable strobe effect. strobe macro function
Color: 12 colors+white light. Color half color function
Color System: Independent CMYK+CTO color mixing system.
Fixed patterns: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each glass pattern can be independently rotated in both forward and reverse directions
Prism system: Standard configuration includes a single 6-row prism and an 8-row prism? 8 prisms, each prism can independently rotate forward and backward
Macro functions: console reset function, autonomous mode, master-slave mode
Display mode: LCD display, button+touch dual operation mode
Control signal: International standard DMX512. With RDM function, online software upgrade is available, and address codes can be dialed
Cooling method: using axial fans to enhance cooling
Safety device: equipped with electronic temperature control overheating protection, automatic power-off protection for electronic temperature control in case of overheating system failure
Appearance material: High temperature resistant plastic
Working environment: -20 degrees, 40 degrees
Protection level: IP20
Net weight of product: 22.5kg
Product size: 38 * 27 * 65CM (L * W * H)
