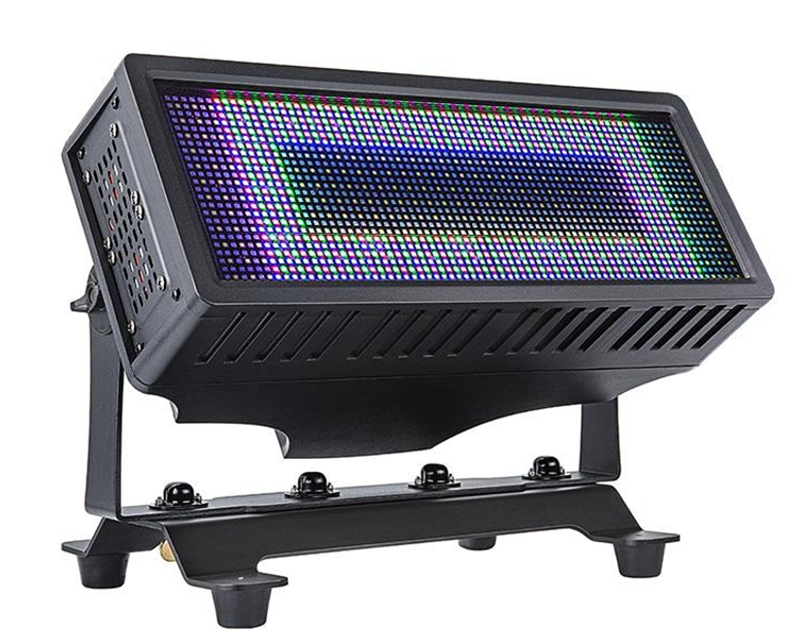

Outdoor IP65 590W 728 RGBW LED Strobe Light

Light source 1728 RGBW LED

Beam angle 98°

Flood angle 156°

Brightness 5 meter1282 Lux(Full brightness)

180000 lm(Peak strobe)

Mix color RGBW

Pixel matrix 4 x 12

Strobe 0-30 Hz

Dimmer 4 dimming curves

Power and data connection

Power connection IP65 Power con input/Output

Data connection IP65 Signal line input/Output

Max connection 2 unit/230V

Pact DMX, Artnet and RDM

DMX channel STATIC 1PX ADVANCED 1 STROBE 2PX ADVANCED 2 PIXELS 3PX ADVANCED 3 RGBW STROBE 12PX ADVANCED 4

48PX

Built-in program Yes

Show TFT 220 x 176

Input voltage and power

Input voltage and frequency 100 - 240 VAC, 50/60 Hz

Power 590W(Full brightness)

1500W(Peak strobe)

Housing structure

Housing Die-cast aluminum

Color Black matte

IP rating IP65

Heat dissipation) Variable speed cooling motor

Environment temperature -20°C ~ 40°C

IP rating IP65

Size 468 x 179 x 268 mm

Net weight 15 KG
