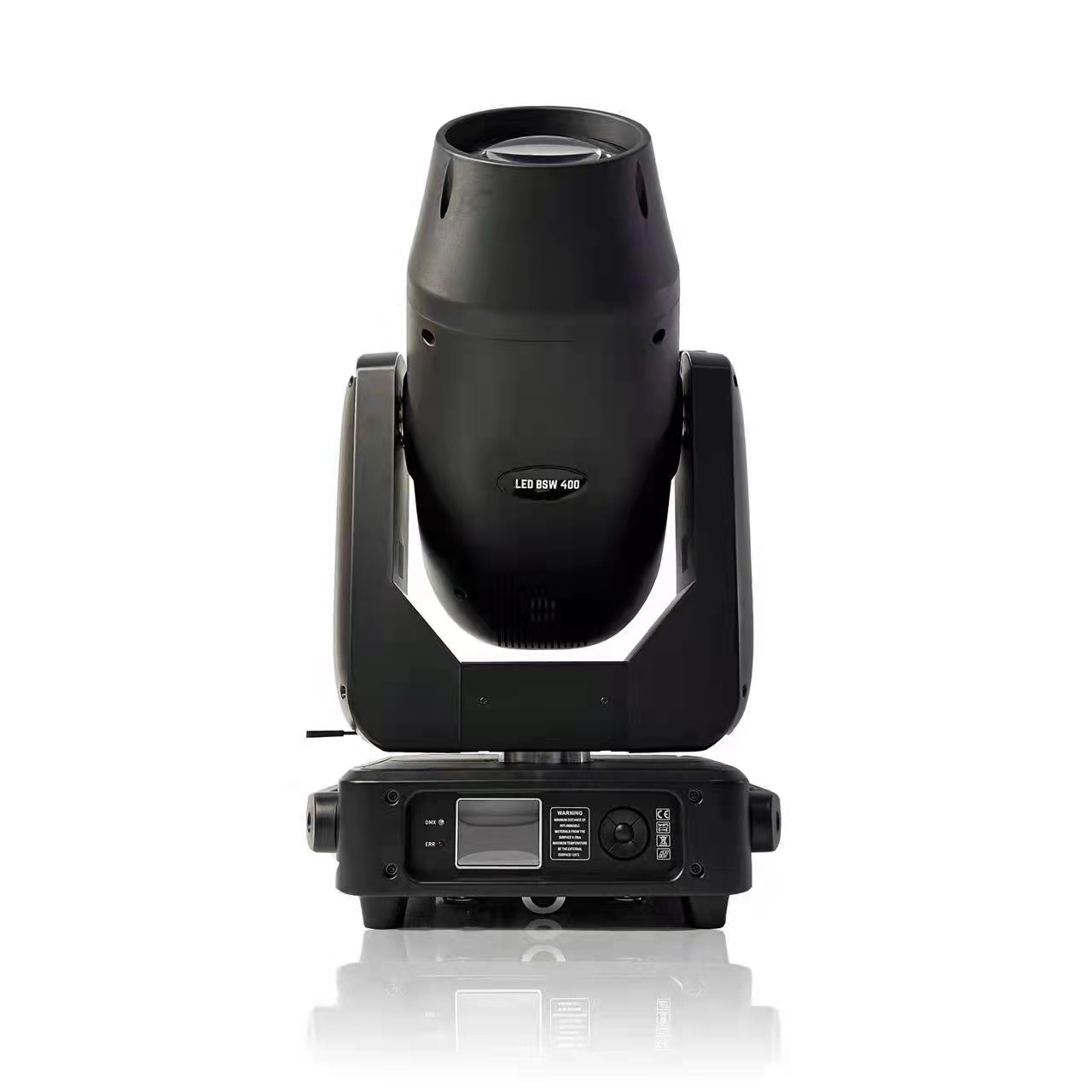

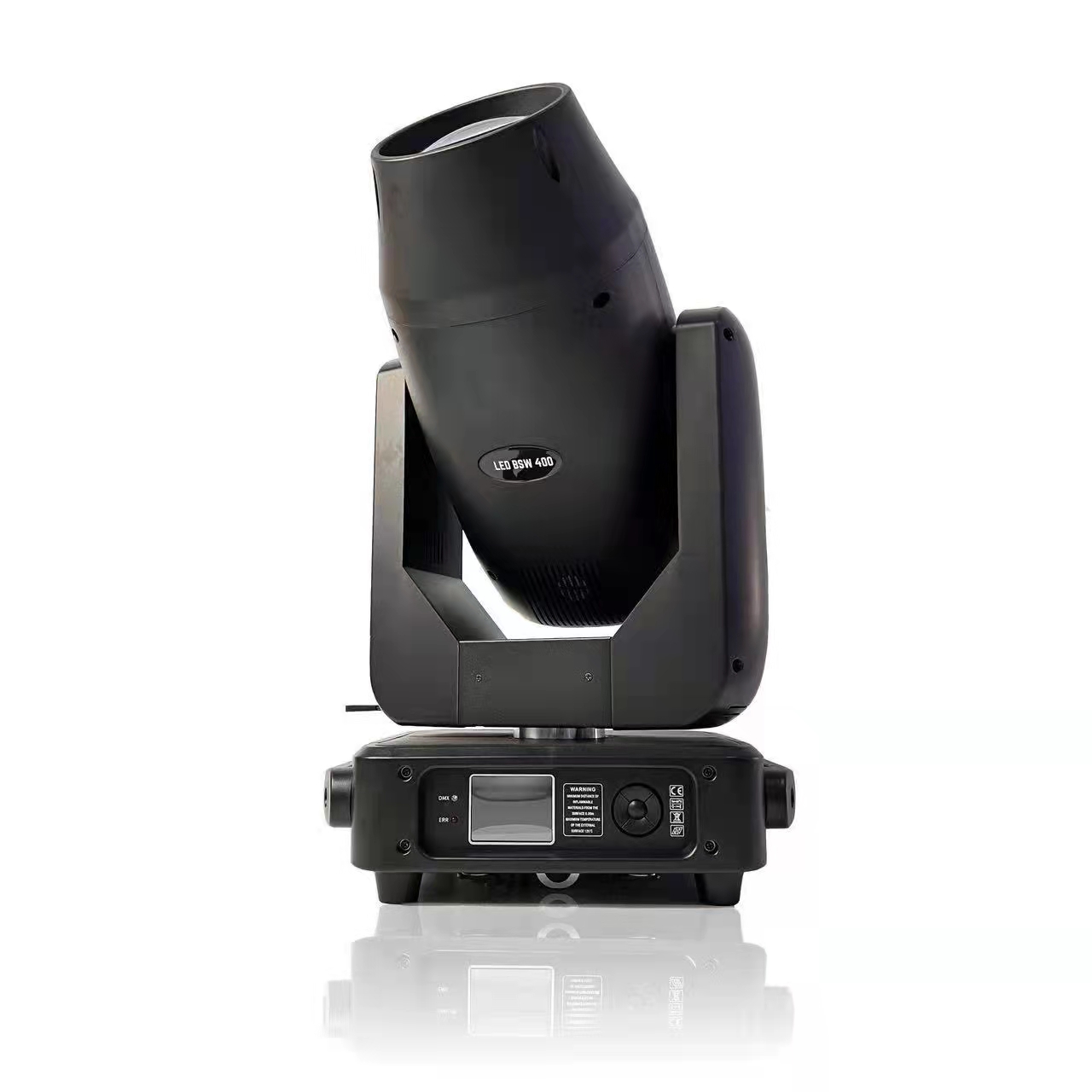

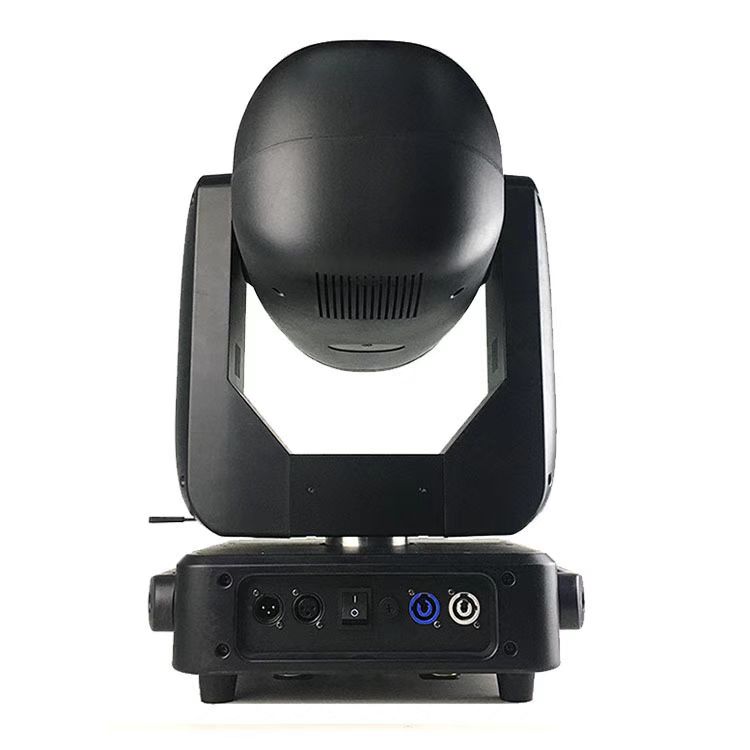

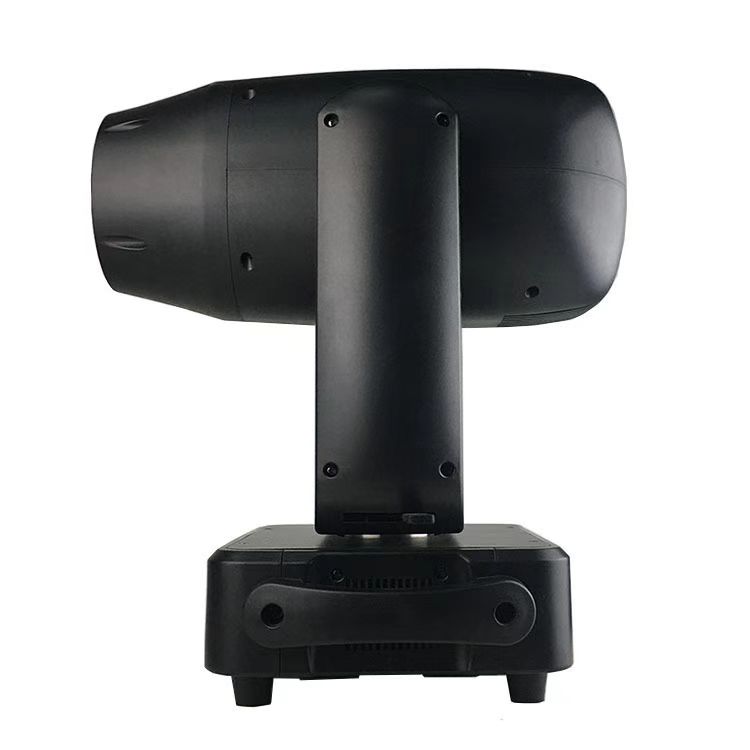

400W 3in1 Led Moving Head Beam Spot Wash CMY CTO

TECHNICAL PARAMETERS

POWER SUPPLY

Input voltage: AC110V-240V/50-60HZ

Power consumption: 430W


LIGHT SOURCE

Light source specification: Imported new LED Module engine 350W

Light source life: 50000 hours

Lumen illuminance: 5 meters 100,000 lm

Color temperature: 8000K CRI>85


OPTICS

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Frost: 1 independent frost filter, soft and natural light spot

Spot zoom angle: 4-35 degrees

Wash angle:10-50 degrees

High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function.


CONTROL AND PROGRAMMING

Channel mode: 22/26 channels

Display mode: LCD touch screen display with display flip

Control signal: International standard DMX512. With RDM function, online software upgrade is available, dial address code


EFFEC SECTION

Color: 8 colors + open. Color half-color function

Color mixing system: linear CMY+CTO color mixing system

Fixed gobos: 12 fixed patterns + ioen

Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse

Prism system: standard single 3-facet prism and 8 prism, each prism can be independently forward and reverse

Macro function: console reset function, self-propelled mode, master-slave mode


MOVING BODY

Horizontal scan: 540 degrees (16bit precision scan) electronic error correction

Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction

Cooling method: Adopt axial fan to enhance cooling

Safety device: with electronic temperature control overheating protection,electronic temperature control automatic power-off protection when the overheating system fails

Appearance material: high temperature resistant plastic

Working environment: -20 degrees - 40 degrees

Protection level: IP20
