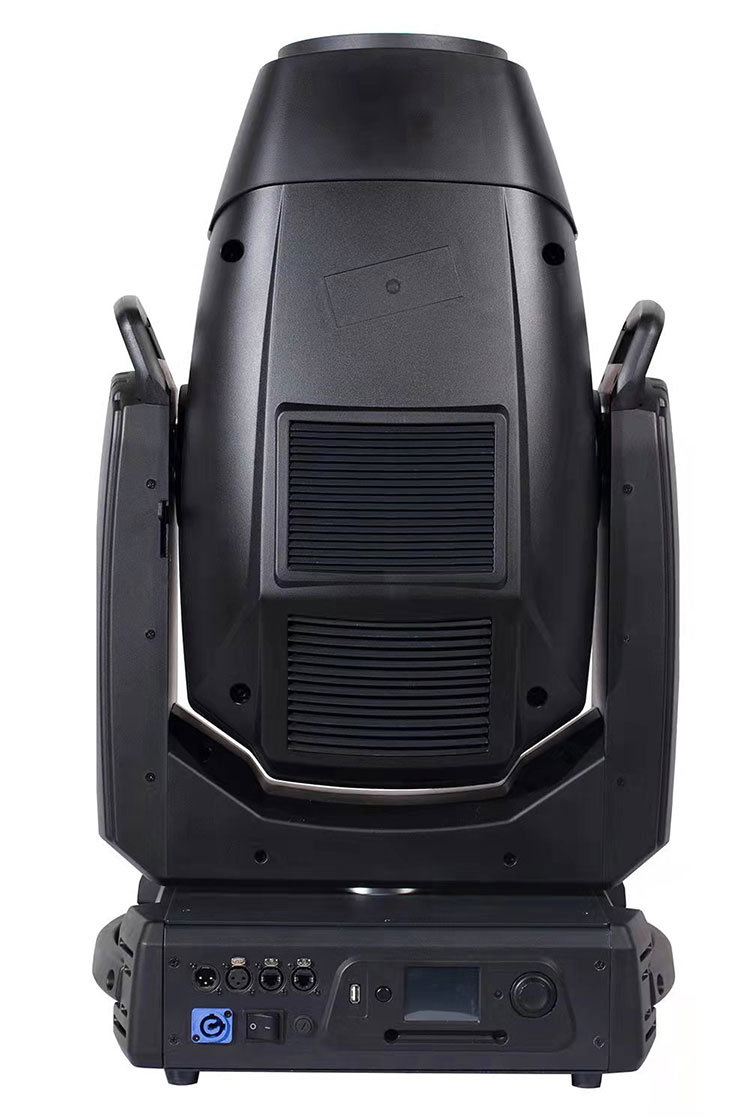

1400/PS Moving head profile spot beam Light
1400/PS Moving head Profile Spot Beam Wash
Light source: Lok-it 1400/PS Brilliant
Color temperature: 6000K
CRI: Ra≥95
Electrical parameters: input voltage/frequency AC: 198-240V/50-60Hz
Maximum power 1800W
Product Features
Channel Mode 40/44 DMX channels
X/Y scanning Three-phase ultra-quiet scanning system, X, Y axis 8/16Bit, X, Y axis automatic return
Scanning speed Horizontal 540 degrees 4.2 seconds Vertical 270 degrees 2.5 seconds
Zoom angle 5-50°; Φ180mm front mirror
Gobo size Outer diameter: 32mm Inner diameter: 25mm
CMY CMY stepless color mixing, CTO color temperature correction
Color wheel: 1 color wheel with 7 colors + 1 white light, variable speed bidirectional rainbow effect, color positioning
1 effect disc, rotating fast and slow
Rotating gobo wheel: 1 6 kinds of gobos + 1 white light rotary wheel, with index function
Cutting Contrast imaging system, 4 slices in 8 directions, dynamic imaging of any size
Prism 1 quadrangular prism, prism with rotation function
Atomization light/dense, double layer atomization, linear adjustment, pulse atomization
Focus: Linear focus adjustment, with auto focus function
Amplify Linear adjustment
Aperture 5-100% linear adjustment of beam size
Strobe Mechanical strobe, 0.5-12 times/second, with synchronous strobe, linear pulse strobe, slow-fast random strobe mode
Dimming Linear Dimming
Energy-saving mode When dimming is closed, it supports energy-saving mode, and the power consumption of the bulb is automatically reduced to 80%, extending the life of the bulb
Display mode: 2.8-inch color touch screen, Chinese and English menus, with automatic flip function
Control method DMX512 signal, WDMX wireless system (optional), network control Art-net (optional)
Advanced and intelligent RDM function Two-way data transmission
Software upgrades can be updated via DMX connection
The built-in battery can set the parameters of the lamp when the power is off (optional)
Signal input and output 3-pin/5-pin
physical properties
Dimensions Length (mm): 482 Width (mm): 372 Height (mm): 834
Weight Net Weight (kg): 47.4 Gross Weight (kg): 55 (Carton)
Installation method 4 1/4 English locks
Ambient temperature The ambient temperature is 45 degrees, and the maximum surface temperature is less than 100 degrees
Noise 45-55 decibels
Safety and Protection
Overheating Protection Thermostat
IP rating IP20
