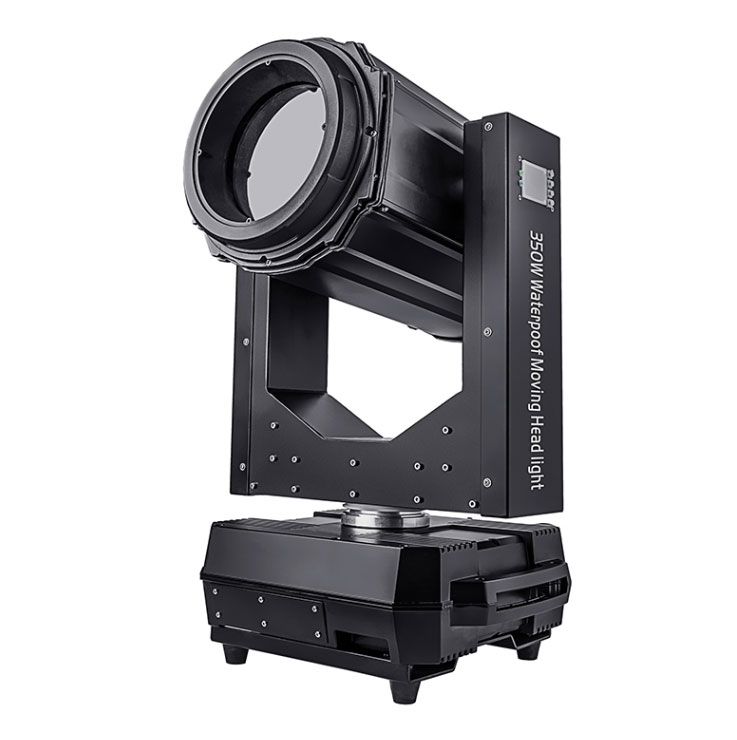

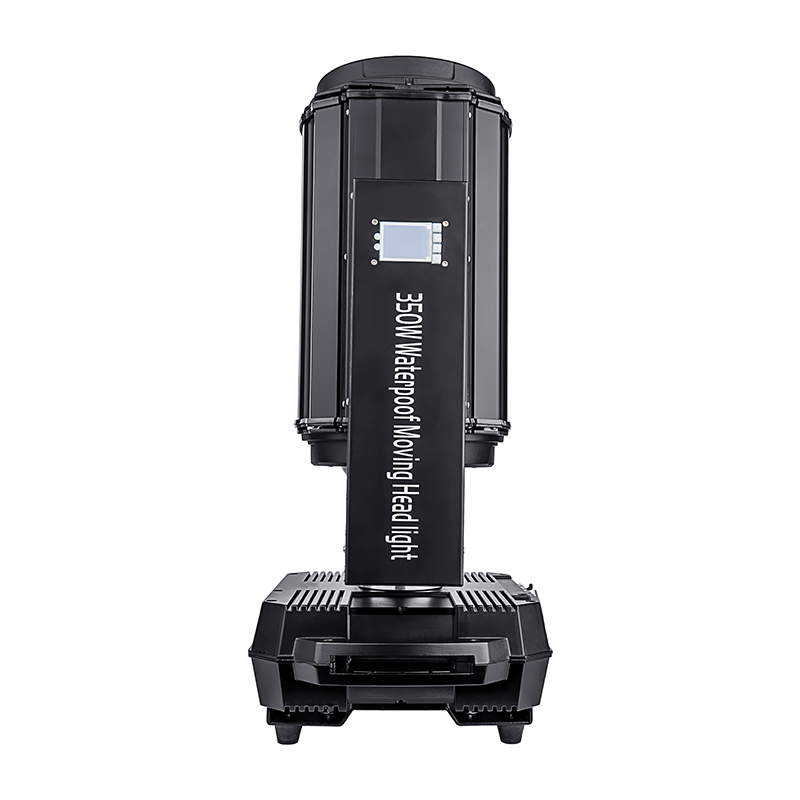

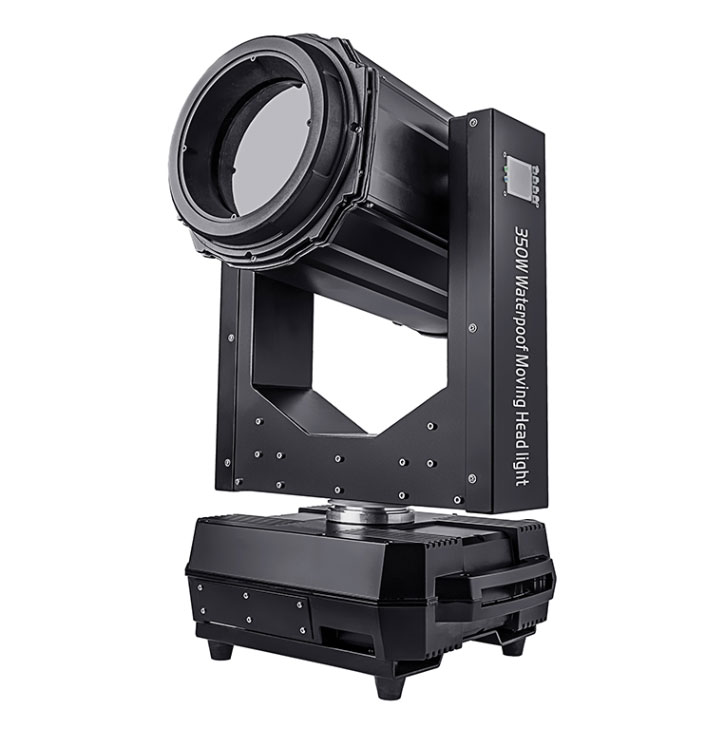

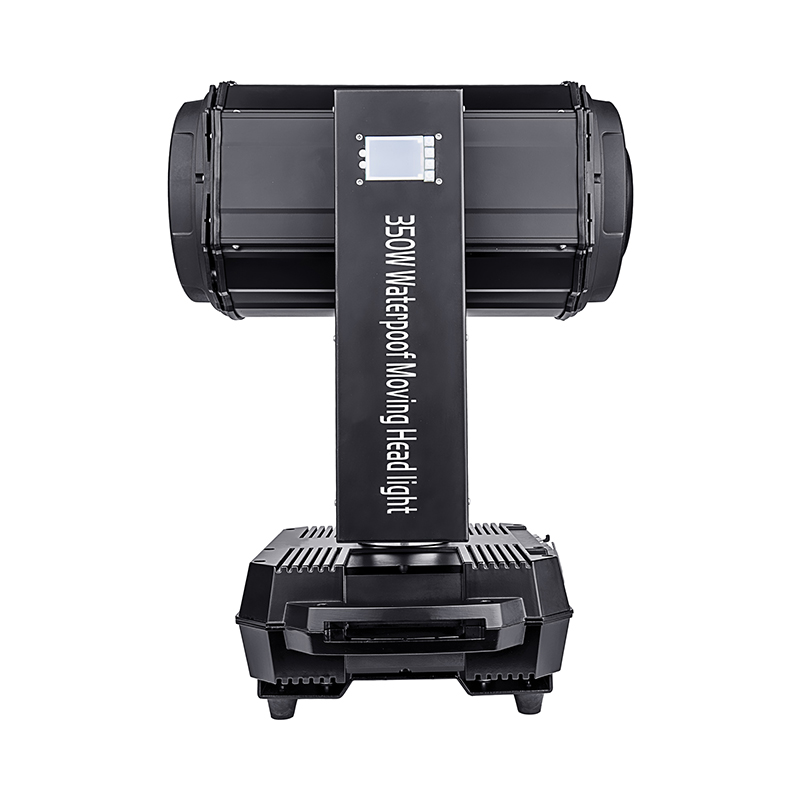

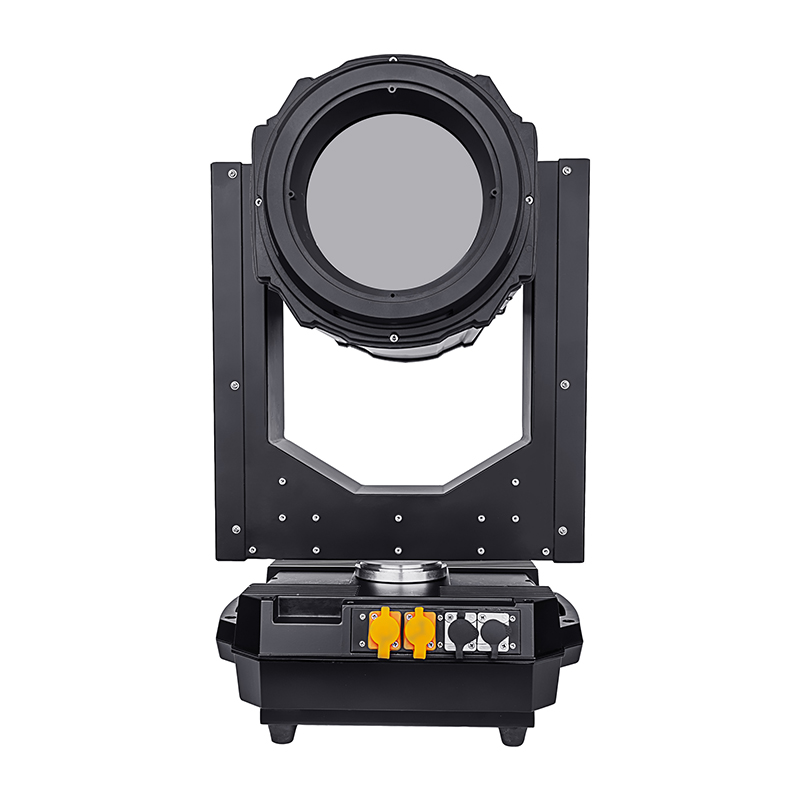

350w waterproof moving head beam light

Intelligent 350w moving head beam light - waterproof outdoor
Light Source: High brightness Platinum lamp YODN 17R
Life Span: 1500-2000 hours
Color System: Use imported high temperature resistant color filters, 14pcs colors+open, half colors and rainbow effect
Gobo System: 17pcs gobos+open
Focusing System: Double enhanced stepping motor, electric focus
Frost System: High temperature resistant frost filter, can be use as wash light
Lamp On/Off Function: Lamp on/off controlled via DMX512 controller, lamp on/off while power on can be set via display
Dimmer: 0-100% linear dimmer
Beam Angle: Can be adjust via different gobos
Prism System: 16-facet prism, bi-directionally rotating at variable speed, marco function
Display: LCD screen
Pan/Tilt: Use 3-phase waterproof motors for Pan & Tilt, Pan-540°, Tilt-210°, fast and stable movement, automatic pan/tilt position correction
Heat Dissipation System: Use CFD software to analyze heat flux, with low noise heat dissipation system, use an imported thicken eddying fan and an imported 8*8 DC fan for the lamp heat dissipation, use an imported 12*12 DC fan to circulate heat dissipation inside the light body. Passed the test over 40° working environment(Required lamp temperature≤380°, actually, the lamp temperature≤380°). Use two 6*6 imported DC fans blowing power supply and light board at the basement.
Power Supply Module Design: Power supply is from Chinese famous supplier, imported light board, which make light fixture working more stable and smoothly
DMX Channel: 16CH & 20CH, channel modes can be set via display, 16CH is factory setting
Built-In Programme: Kinds of built-in programme, single white beam scanning from left to right at low speed or with color changing or with different light beams.
Programming: You can programming six different programme via display, max.20 steps for each programme, with master/slave mode
Waterproof Safety Grade: IP55
1in1 carton:65x59x92cm
1in1 flight case:57x47x95cm
1in1 upside down box: 57x51x95cm
