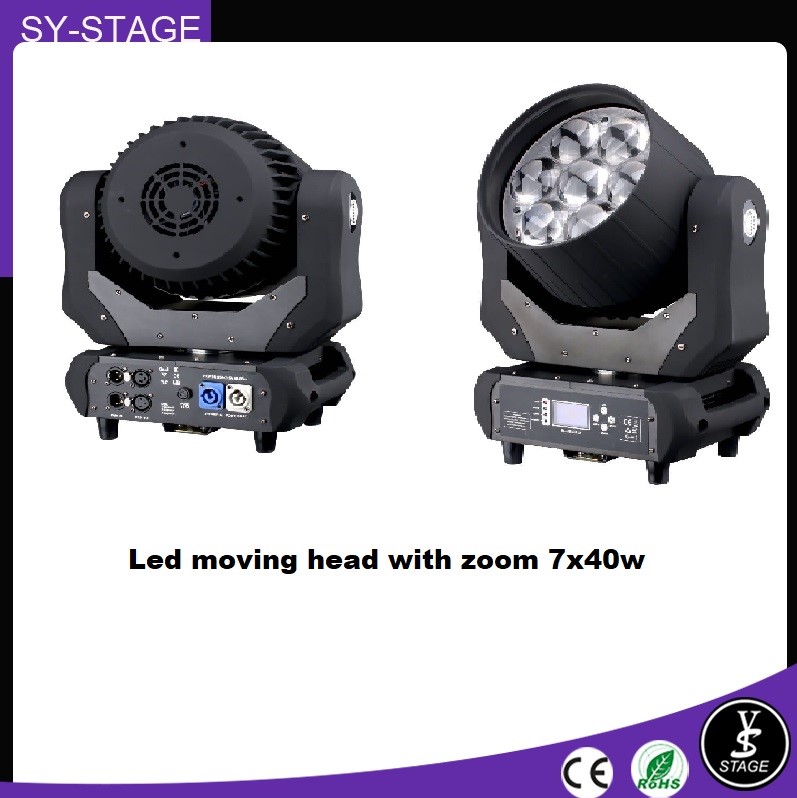

Detailed description

Optics

Motorized linear amplification system, ratio 8:1

Beam angle: 5° to 40°

Efficient optical system

LED  beads

More than 7 chips 40W LED light source

Lumen output: 550 lumens

Luminous intensity: 108000 cd (narrow angle)

Service life: 50000 hours

No flicker source management, suitable

TV applications and video recording events

Movement

Very accurate positioning of movable heads with 8 or 16 bit BIT resolution

High-precision stepper motor operation ensures extreme accuracy and smooth motion through the microprocessor.

X and Y are automatically repositioned

Movable head range: 540° (X-axis), 200° (Y-axis)

Colour

Complex 4 colors red, green, blue and white mixed to achieve high color rendering index

Uniform beam without color shadows, and rich saturated and light colour-hues 42.9 million colors (8-bit resolution)

Virtual color wheel, including the most common white

Color temperature preset

Dynamic color and variable speed macro effect

Dimming/Strobe

Electronic dimming makes perfect adjustment from 0 to 100% without color change

White or color strobe effect, speed adjustment from 1 to 25 flashes per second

Software facility

The local DMX solves the luminaire and its optional remote DMX solution with its built-in LCD panel control parameters and its optional parameters via a standard RDM DMX controller

Built-in Mode with Effects of Speed ＆#8203;＆#8203;and Attenuation Controls Beautiful application information menu including hour counter, temperature, software version

Hardware facilities

Addressing and Graphic LCD Display Special Function Settings, Flip Function 6 Menu Button Settings Function

In temperature protection

3/5 pin XLR male and female connection DMX cable

Aviation male and female connecting power cables

Control

DMX 512 protocol via DMX cable

DMX-RDM compatible

Independent mode

Local control panel, LCD display

Select DMX14 mode

Switching power supply

Switching power supply with PFC

110 - 240V- 50/60Hz

Power: up to 300W

Cooling system

Advanced cooling system

Self adjusting speed

Fan silent mode (automatic mode)

Choose automatic, stage and studio ventilation modes

Safety protection over temperature

Shell

Movable head skeleton made of aluminum and steel metal plate, radiator made of extruded aluminum, polished in self-extinguishing type covering flame retardant ABS computer (V0 class)

Both parties handle the transportation

Four powerful wide feet for better stability

IP20 protection level

Exterior decoration: black (carbon)

Installation

Fastening the bracket system: A stage to clamp the bracket to the use design standard

Mounting point: One quick lock allows installation of ω luminaire brackets Safety cable joints

Operating parameters

Operating position: All

(Equipment on floor or fixed support)

Maximum allowable ambient temperature

(Ta max): 45°C (113°F)

Minimum allowable ambient temperature

(Ta min): -10°C (14°F)

Use the minimum distance: 1.0 meters (3.28 feet)

Product Size:

Weight: 9.1 Kg
